Removing Brake Light Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The brake light switch is located on the brake master cylinder.

Information

Do not drain brake fluid. The brake light switch is inductive.

  1. Release and unplug electric plug connections -2 and 3-  .

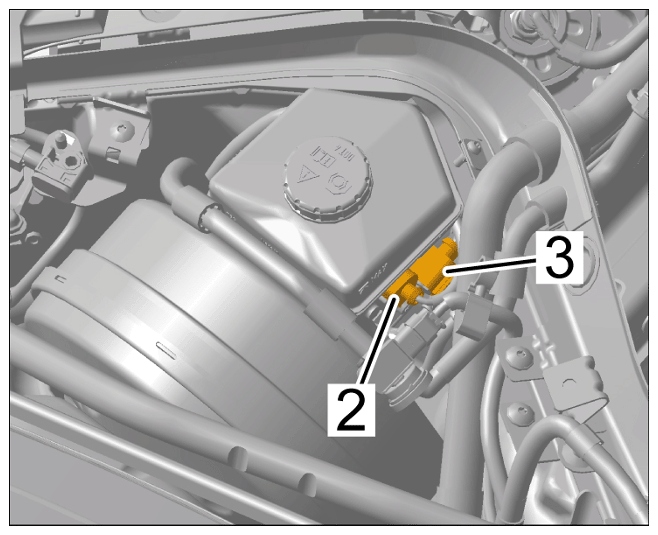

    G15875955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  2. Remove brake light switch -5-  .

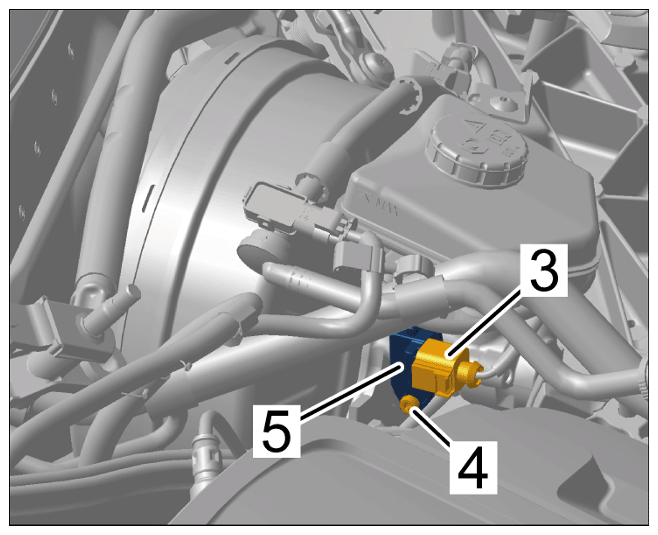

    G15875956Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing brake light switch

    1. 2.1 Unscrew and remove screw -4-  .
    2. 2.2 Lift brake light switch -5-  up and remove it.
