Removing Tail Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew and remove screws -2-  .
    G15875951Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

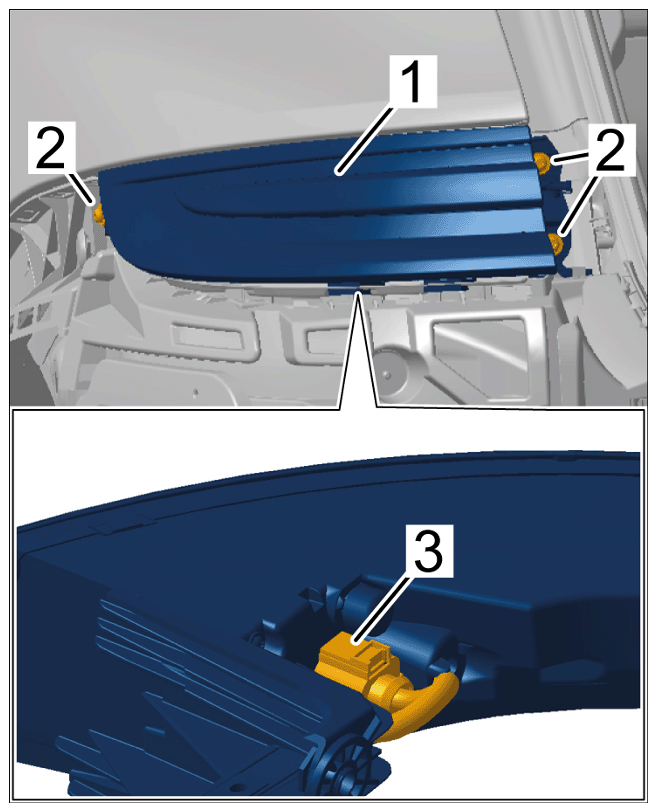

  2. Loosen tail light -1-  and release and disconnect electric plug connection -3-  .
G15875952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing tail light
