Removing Tail Light In Rear Lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

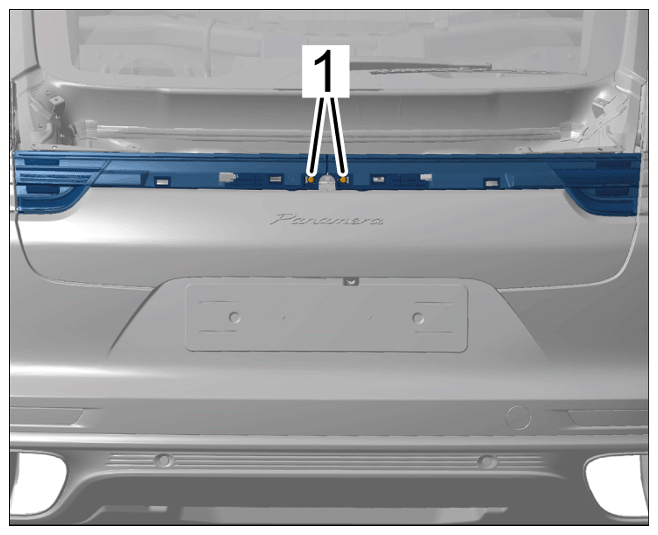

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
Open the rear lid.

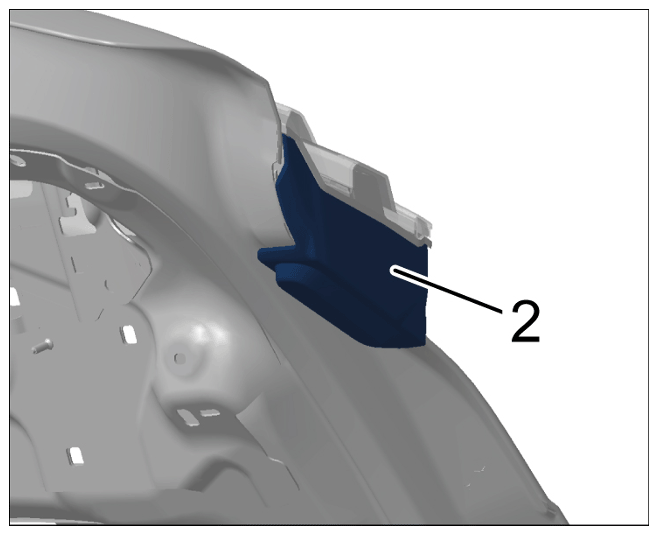

Unclip side cover -2- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping side cover

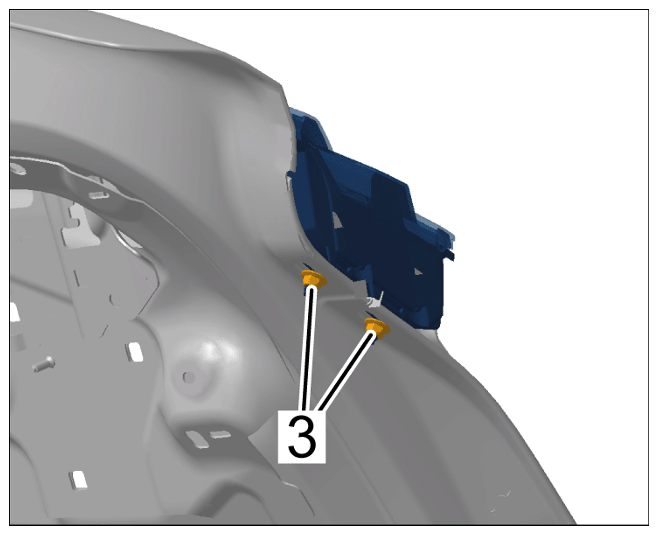

Unscrew nuts -3- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts
Remove right tail light.

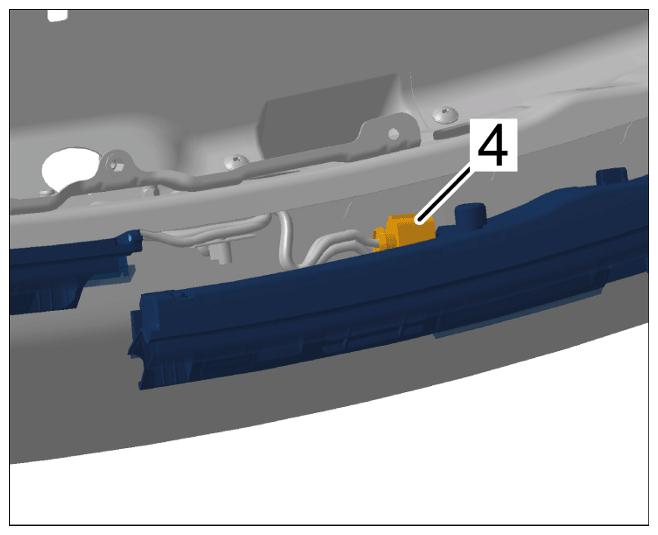

1. 5.1 Pull out right tail light until the electric plug connection -4- is accessible.
2. 5.2 Release and disconnect electric plug connection -4- on right tail light.
3. 5.3 Remove right tail light.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing tail light in rear lid at the right
Remove left tail light.

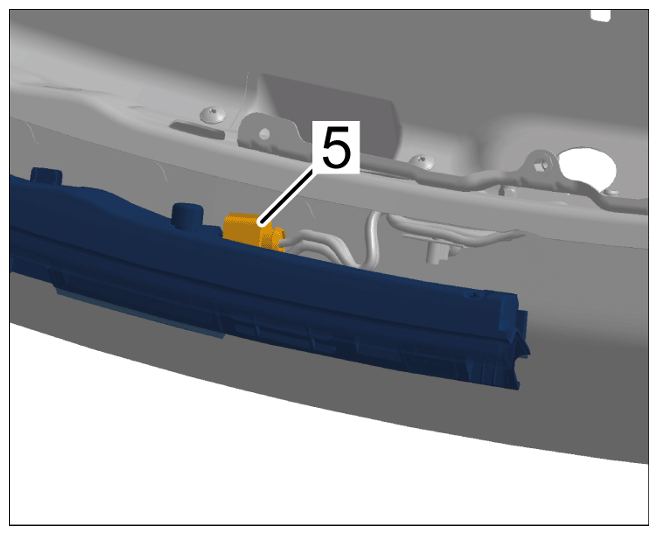

1. 6.1 Pull out left tail light until the electric plug connection -5- is accessible.
2. 6.2 Release and disconnect electric plug connection -5- on left tail light.
3. 6.3 Remove left tail light.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing tail light in rear lid at the left
