Removing Main Headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

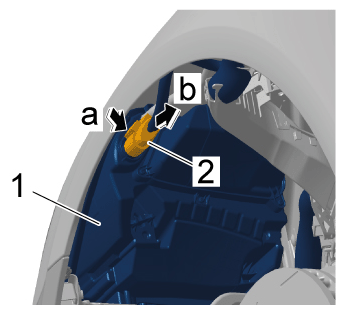

Release electric plug connection -2- on the headlight -1- (-arrow a- ) and disconnect it -arrow b- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

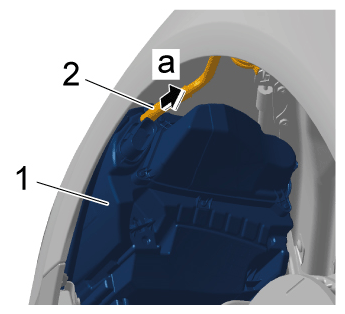

Pull vent hose -2- off the headlight -1- (-arrow a- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent hose

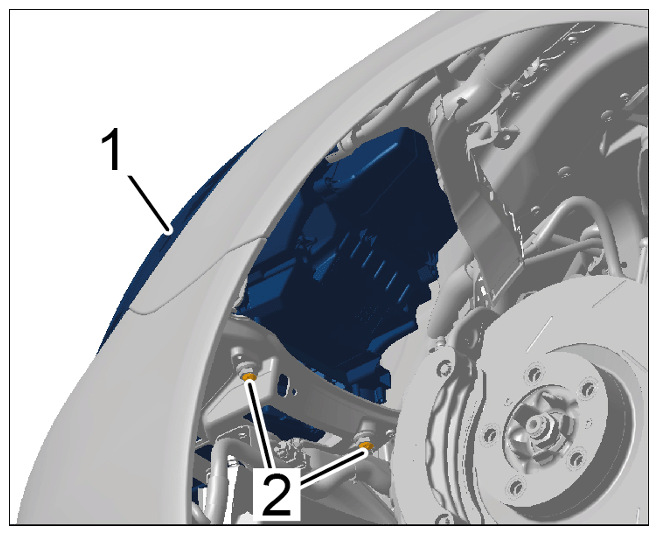

Unscrew screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

Information

Mask or cover the front apron in the headlight area to prevent damage.

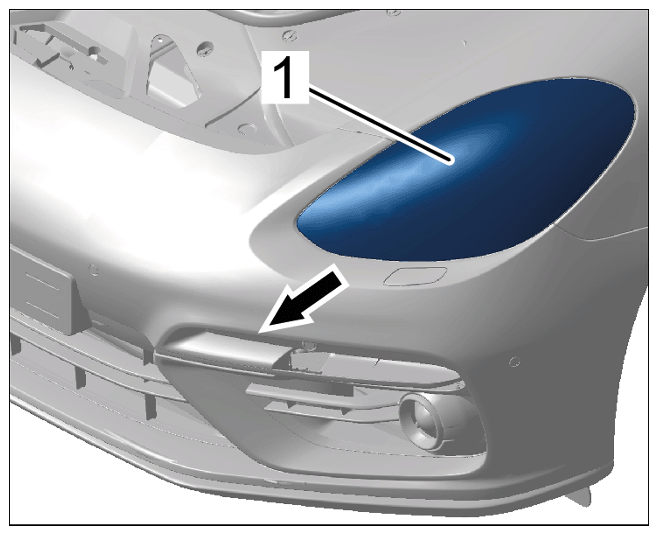

Pull the headlight -1- forward out of the guides -arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlights
