Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...

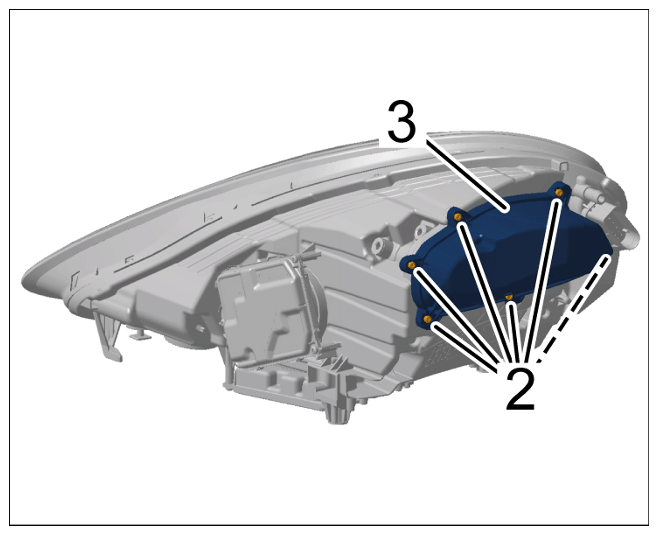

Screws for rear headlight cover	Item 2	Tightening torque	1.5 Nm (1 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear headlight cover
Screws for side headlight cover		Tightening torque	1.5 Nm (1 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)

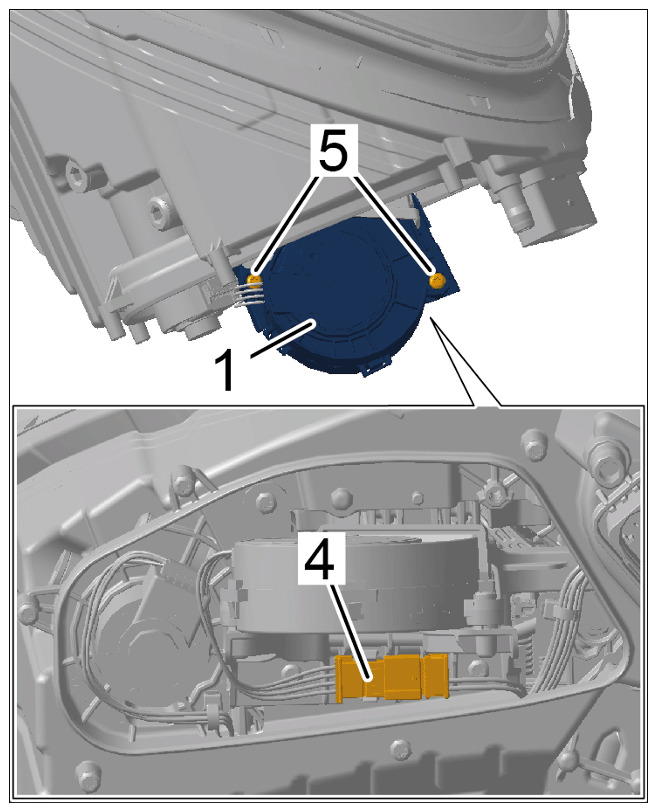

Screws securing LED module fan to LED headlight	Item 5	Tightening torque	1.5 Nm (1 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing LED module fan to LED headlight

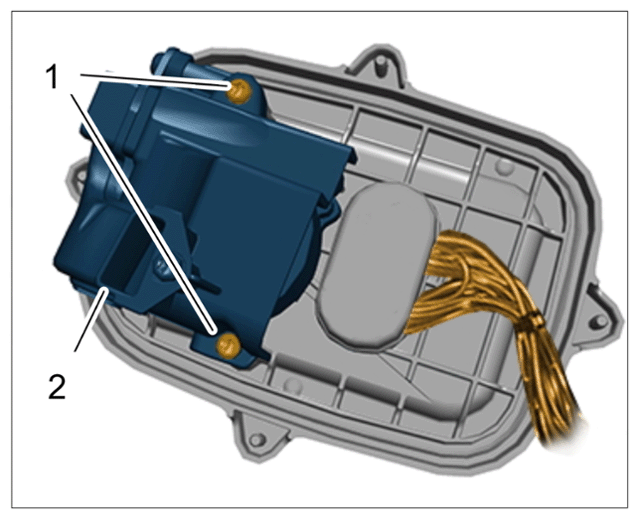

Screws securing LED module fan to MATRIX headlight	Item 1	Tightening torque	1.5 Nm (1 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing LED module fan to MATRIX headlight
