Removing Led Module Fan On Matrix Headlight
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen cover under LED module and lift it up until the LED module fan -2-
is accessible.
> Removing and installing LED module

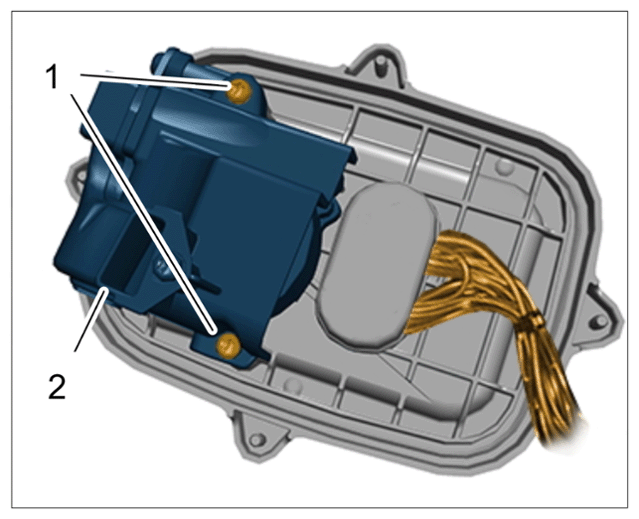

- Unscrew and remove screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Loosening MATRIX LED module fan

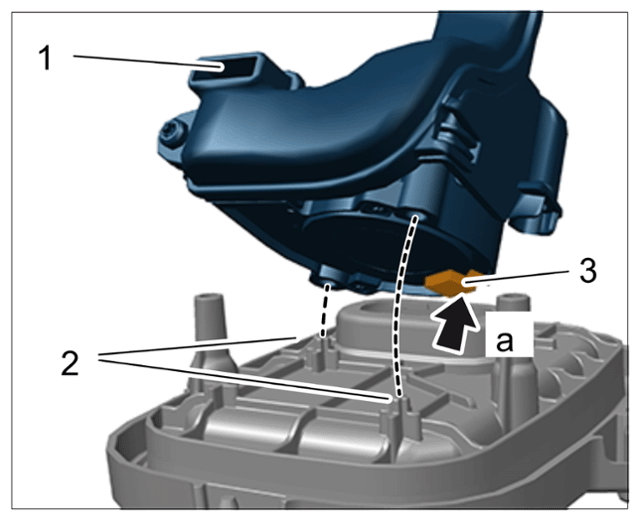

- Lift up MATRIX LED module fan -1-
and disconnect electric plug connection -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing MATRIX LED module fan
