Removing Led Module Fan On Led Headlight
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

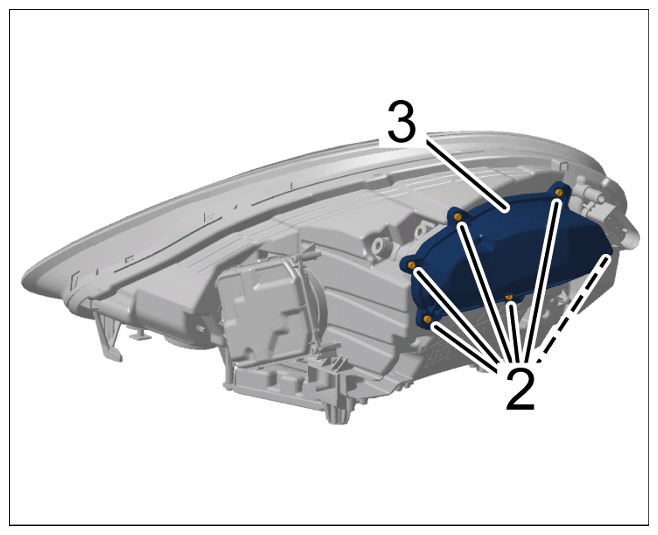

- Unscrew screws -2-
and remove cover -3-
on headlight at the rear.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws
- Unclip, release and disconnect electric plug connection -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Disconnecting electric plug connection

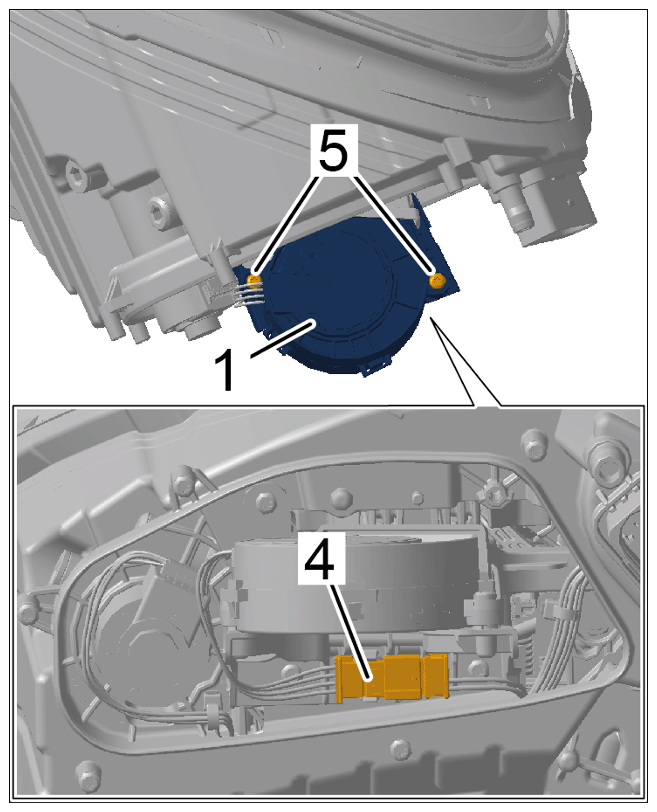

- Unscrew screws -5-
and remove LED module fan -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing LED module fan
