Removing Sun Visor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Loosen sun visor from its bracket.

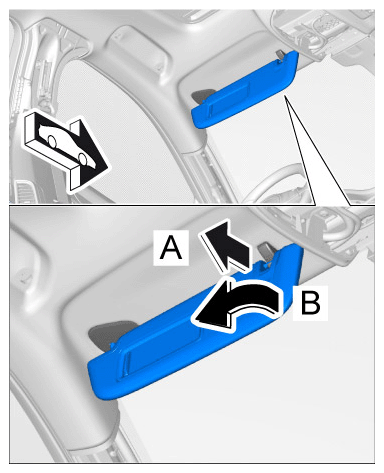

1. 1.1 Fold down sun visor and unclip it from its bracket -Arrow A- .
2. 1.2 Swivel out the sun visor -Arrow B- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor bracket

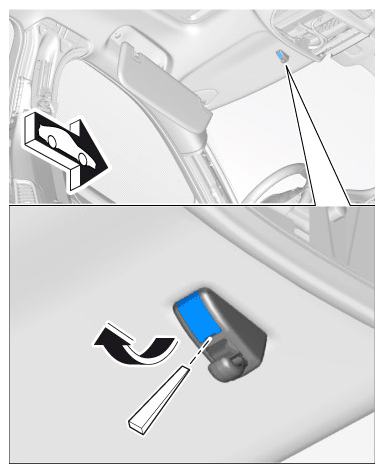

Open cover on sun visor holder -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor cover

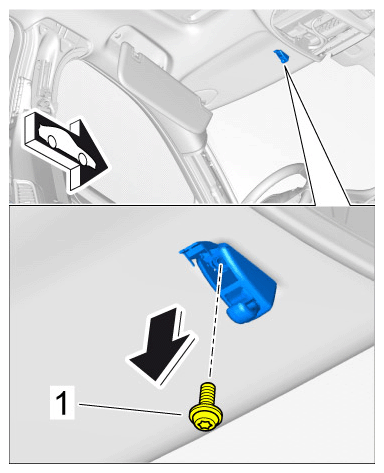

Unscrew screw -1- on the sun visor bearing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor bearing

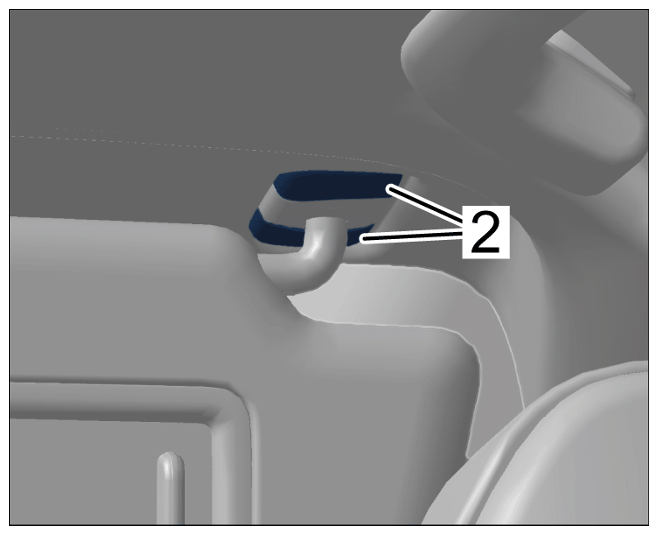

Unclip covers -2- from the sun visor base using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor covers
Unclip sun visor and roof trim panel from bodyshell.
Pull roof trim panel down slightly.

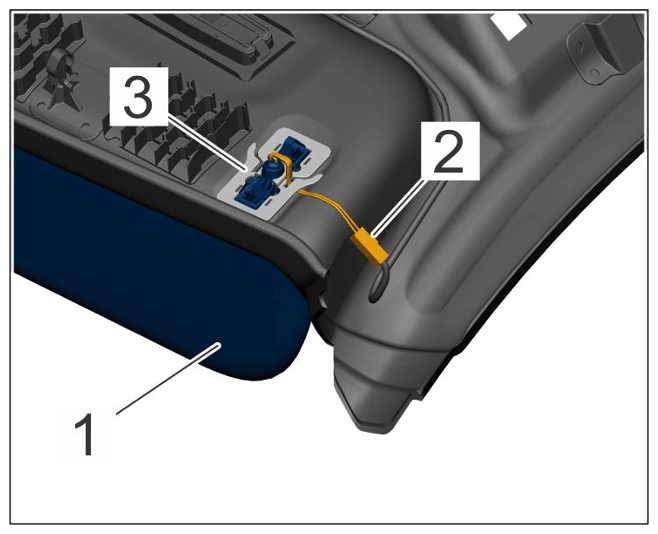

Guide out wiring harness -2- from holder -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line holder

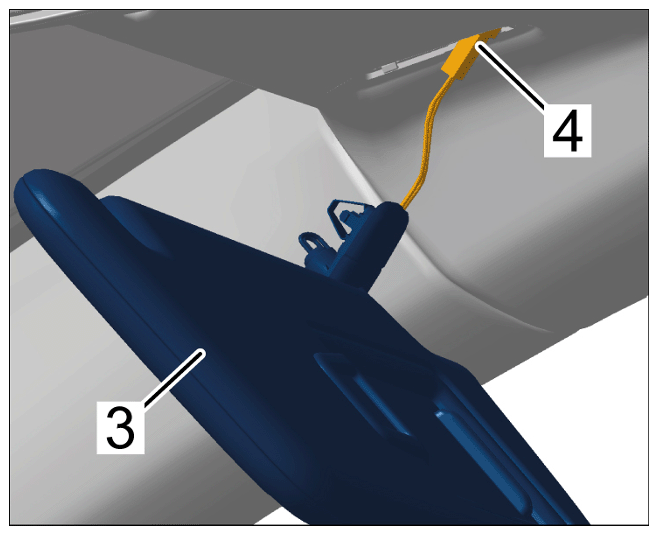

Remove sun visor -3- and release and unplug electric plug connection -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor
