Removing Cover For Oddments Tray

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

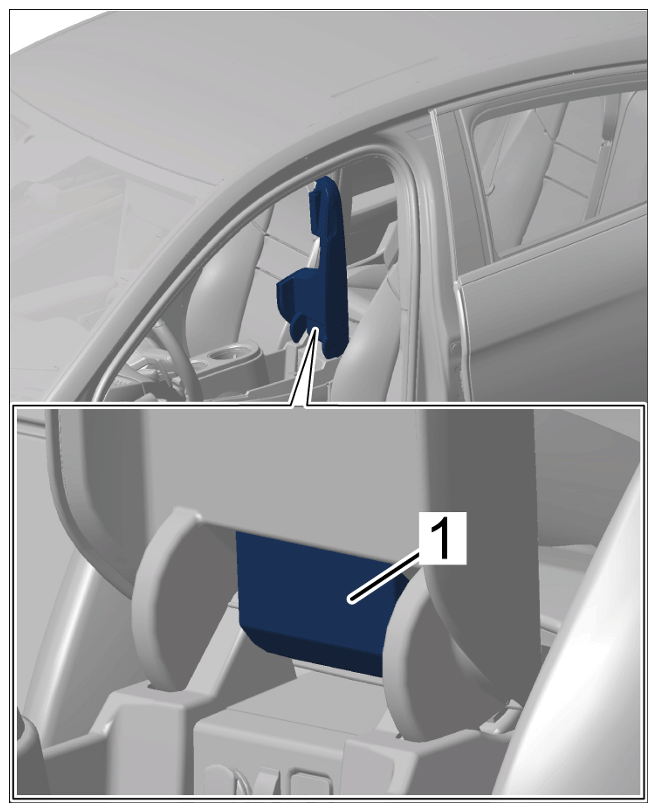

Unclip trim -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping cover

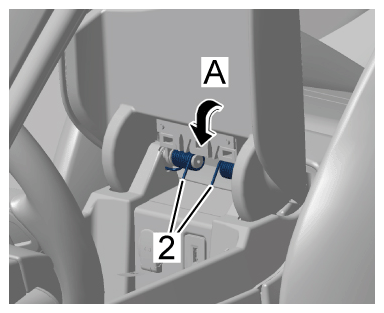

Disengage springs -2- at the inner spring end from cover for oddments tray by pulling them forward -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging springs

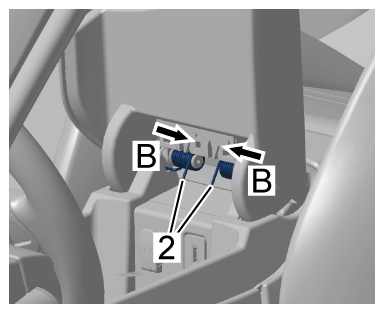

Push springs -2- inwards -arrow B- and remove them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing springs

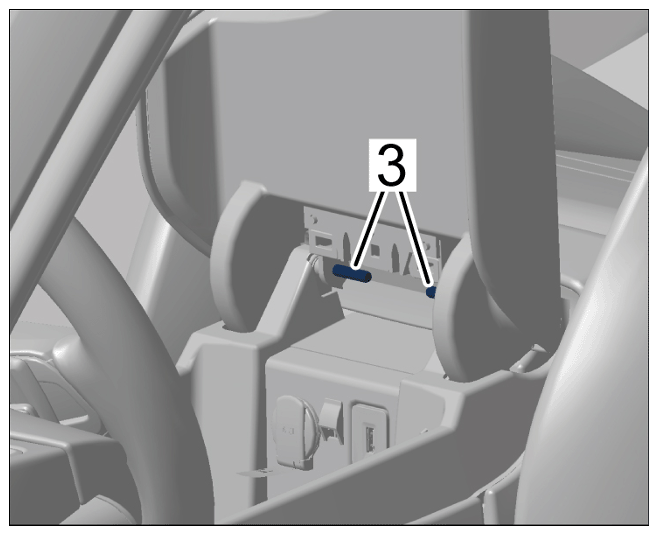

Pull bolts -3- out of the hinges.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing bolts

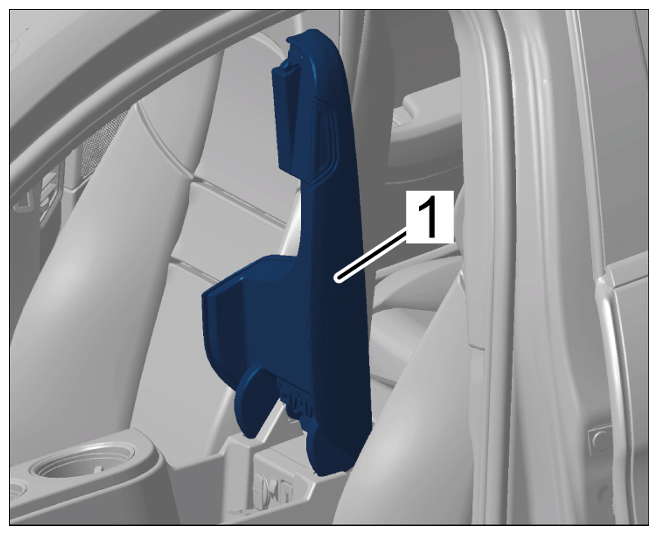

Remove cover for oddments tray -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover for oddments tray
