Removing Rear Centre Console Storage Bin

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

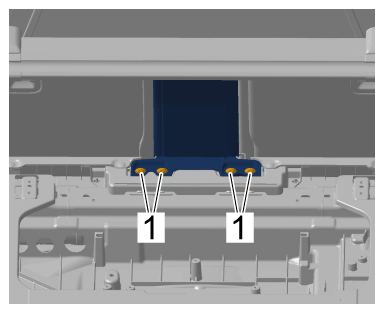

  1. Unscrew screws -1-  .
    G15865166Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

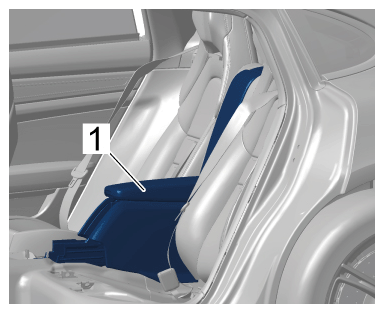

  2. Remove rear centre console storage bin -1-  by pulling it forward.
G15865167Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console storage bin
