Installing Oil/Water Heat EXCHANGER

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of damage or injury from foreign bodies flying around during grinding, drilling and milling

Risk of eye injuries

→ Wear protective goggles.

Information

Risk of contaminating the lubricating system

Cover open parts of the cylinder head.

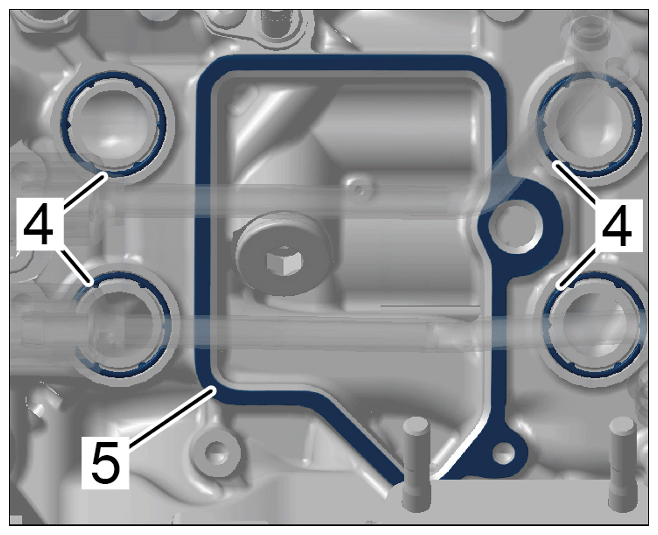

Install new seals -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replace seals
Remove residual sealant from oil/water heat exchanger and cylinder block using a rotating plastic brush.
Cut off the nozzle on the tube at the front marking (nozzle diameter is approx. 1.5 mm).
Information

Install oil cooler within 5 minutes.
Apply a bead of sealant all around the cleaned and degreased sealing face -5- > Application depth 3 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying sealant
Further installation is performed in reverse order.
Screw in and tighten screws > Tightening torque 9 Nm (6.5 ftlb.)
