Removing Oil Pressure Control Valve (V6 Turbo)

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

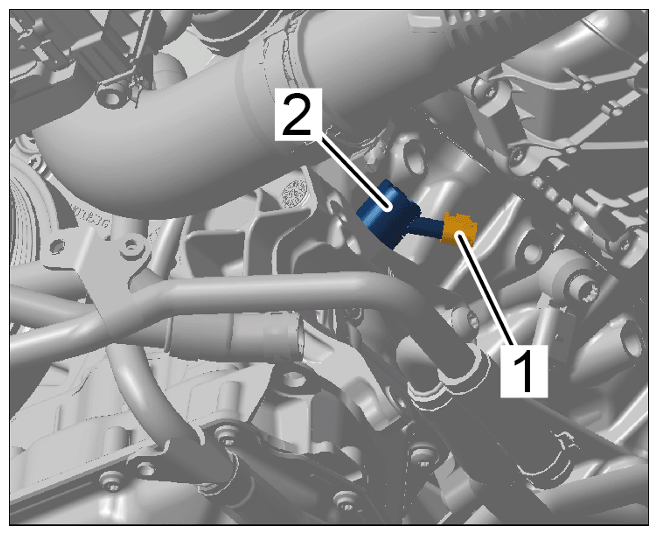

Release and disconnect electric plug connection -1- on the oil pressure control valve -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on oil pressure control valve

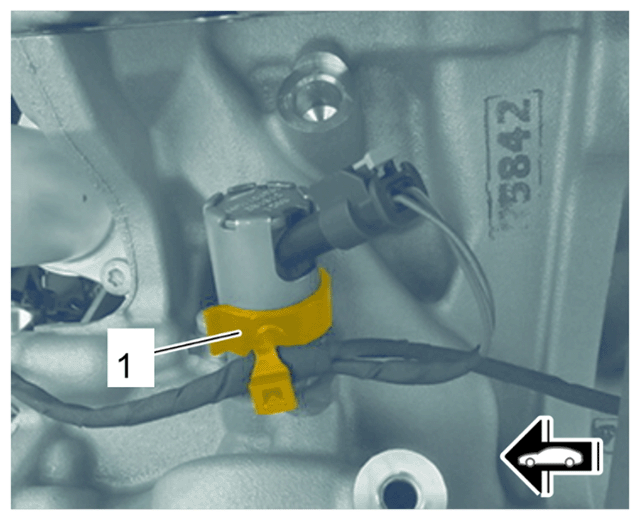

Unclip holder -1- for electric line from oil pressure control valve.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip for electric line for oil pressure control valve

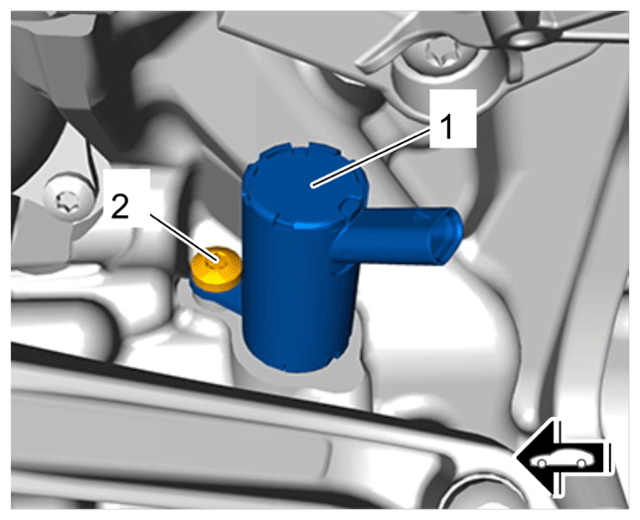

Remove oil pressure control valve -1- .
1. 3.1 Unscrew and remove screw -2- .
2. 3.2 Remove oil pressure control valve -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure control valve screws
