Component Overview Of Oil Sensors
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

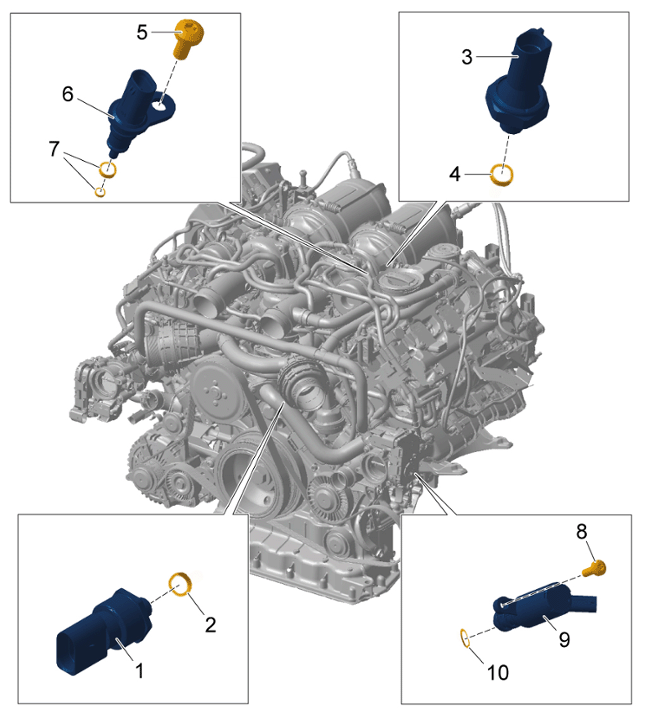

Overview of oil sensors
| 1 |
Oil-pressure sender |
| 2 |
Sealing ring/replace |
| 3 |
Oil pressure switch |
| 4 |
Sealing ring/replace |
| 5 |
crew, M6 x 18 |
| 6 |
Oil temperature sensor |
| 7 |
O-ring/replace |
| 8 |
Screw |
| 9 |
Oil pressure control valve |
| 10 |
O-ring/replace |
