Removing Oil Pump

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect sprocket -2- from oil pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

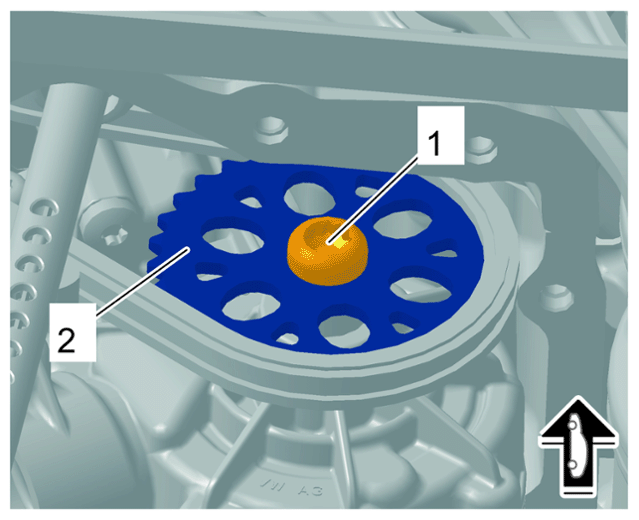

Mounting for sprocket on oil pump
1. 1.1 Counter at the sprocket -2- using > T10172A - counter-hold tool and unscrew screw -1- .
2. 1.2 Pull sprocket -2- off the oil pump and leave it in installation position.
Unscrew screws -1- and remove oil pump -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

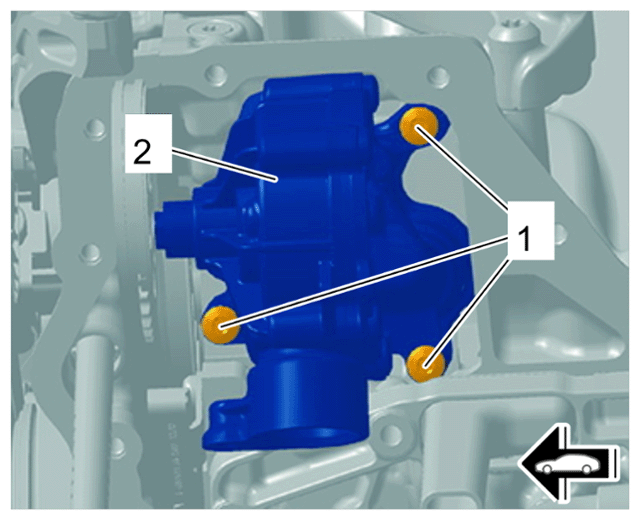

Oil pump threaded joint
