Removing Oil Level Sensor
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Have a cloth or container ready to collect emerging oil.
- Release and disconnect electric plug connection -1-
on the oil level sensor -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

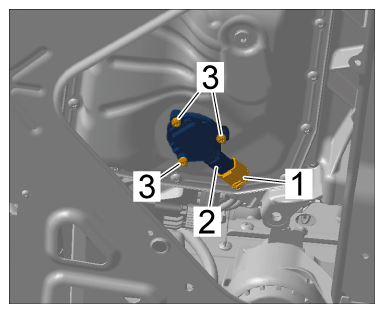

Releasing and pulling off electric plug connection
- Unscrew screws -3-
and pull out oil level sensor -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing oil level sensor
