Removing Oil Temperature Sensor
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

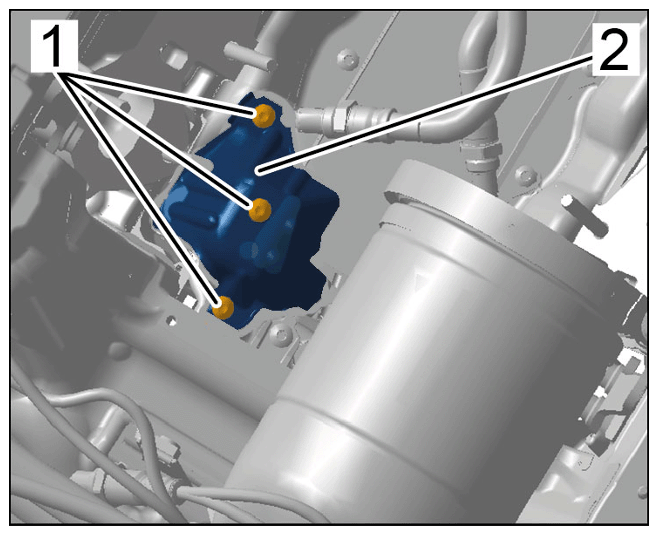

- Remove heat shield -2-
(only for V8 biturbo).
- 1.1 Unscrew screws -1-
.
- 1.2 Remove heat shield -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Heat shield
- Remove oil temperature sensor -1-
.
- 2.1 Release and disconnect electric plug connection -2-
.
- 2.2 Unscrew and remove screw -3-
.
- 2.3 Remove oil temperature sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil temperature sensor
