Installing Oil Pressure Switch

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

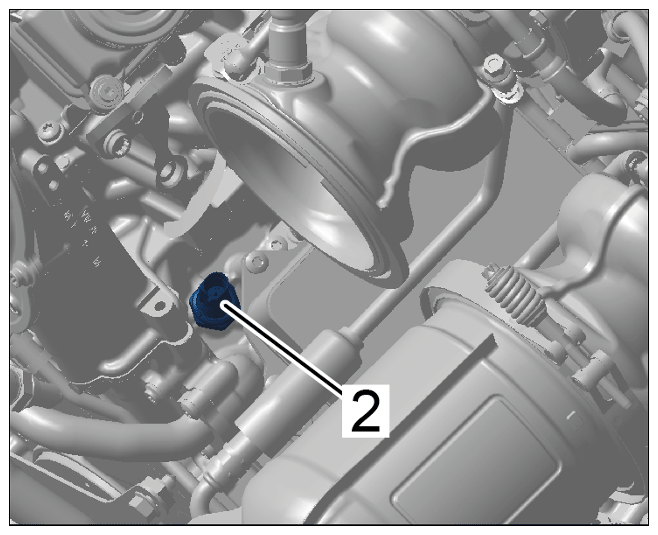

Install oil pressure switch -2- .
1. 1.1 Replace sealing ring on oil pressure switch -2- .
2. 1.2 Screw in oil pressure switch -2- and tighten to > Tightening torque 20 Nm (15 ftlb.) .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure switch

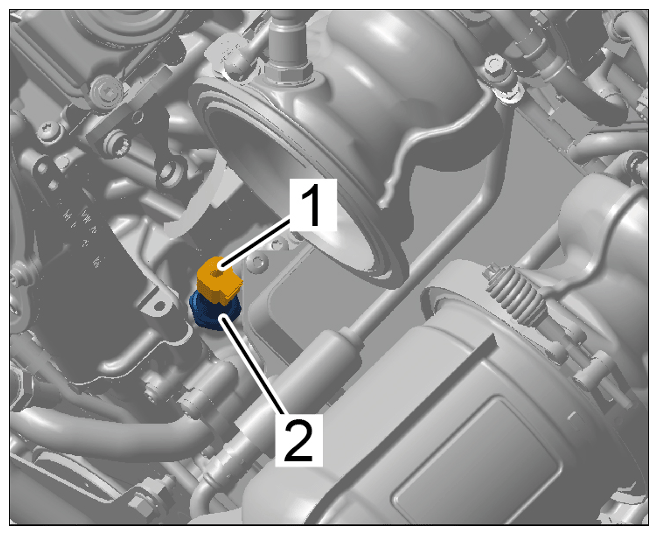

Connect and lock electric plug connection -1- on the oil pressure switch -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on oil pressure switch

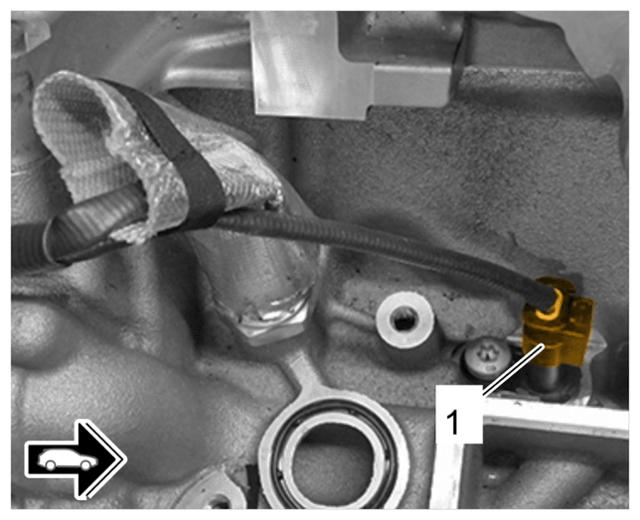

Fit heat protection -2- and electric plug connection -1- .
1. 3.1 Slide heat protection -2- over electric plug connection on the oil pressure switch.
2. 3.2 Connect and lock electric plug connection -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection on oil pressure switch
