Removing Oil-Pressure Sender

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Install new oil-pressure sender as quickly as possible or close off the opening using a suitable stopper to prevent too much engine oil from leaking out.

Have suitable aids ready for collecting escaping engine oil.
Remove oil-pressure sender -1- .
1. 2.1 Release electric plug connection -Arrow A- (-Arrow B- ) and disconnect it.
2. 2.2 Collect escaping engine oil.
3. 2.3 Unscrew oil-pressure sender -1- using > T40363 - socket wrench, a/f 24 .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

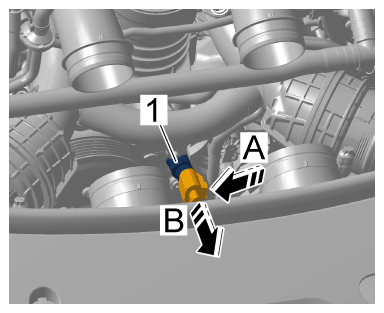

Oil-pressure sender (shown on V6 biturbo)
