WM, 170301 Checking Engine Oil Pressure: Tools
WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Tool denomination |
Type |
Tool number |
Image |

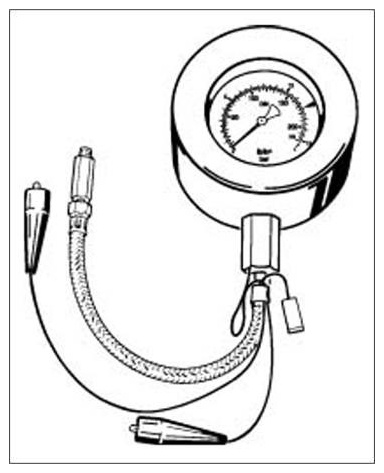

| Oil Pressure Tester |
Vehicle-specific service equipment |
> V.A.G 1342 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Location |
Description |
Type |
Basic value |
Tolerance |
Tolerance |
| Engine oil pressure at idle speed |
Min. pressure |
Overpressure |
0.9 bar |
|
|
| Engine oil pressure at 1, 500 rpm |
Minimum pressure |
Overpressure |
1.3 bar |
|
|
