Checking Water Drains On Door Sill

1. If required:  Remove door entry guard -1-  .

   > 663119 REMOVING AND INSTALLING DOOR ENTRY GUARD - on "Removing"

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

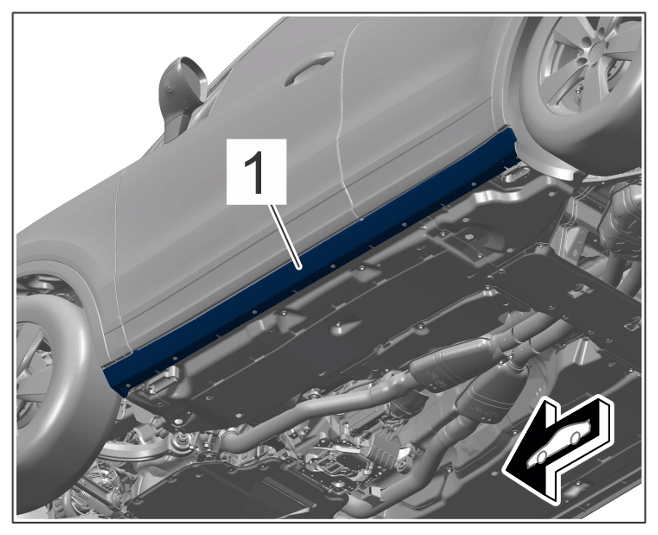

   Door entry guard (shown on the Cayenne)

   Information

   Always replace stoppers.

2. Remove stoppers and valve -1-  from the door sill.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

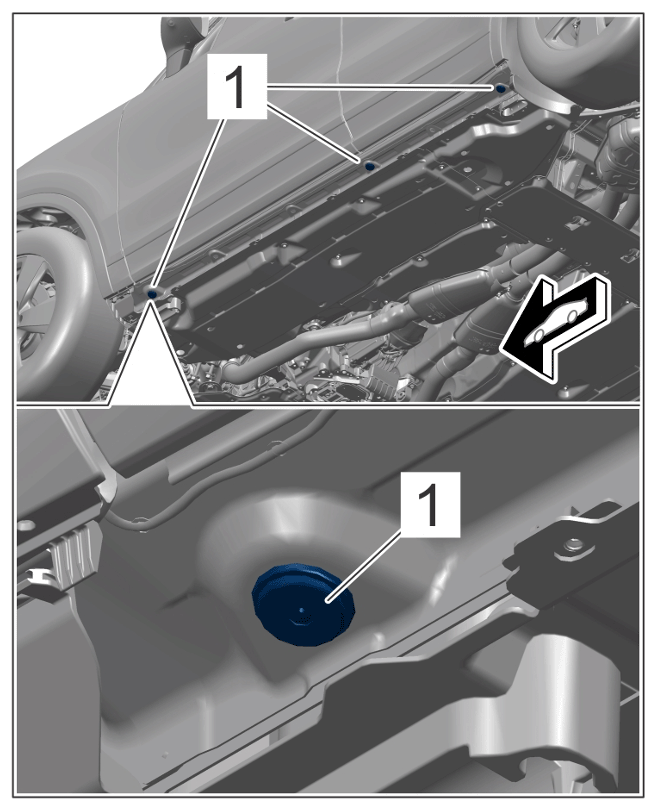

   Stoppers (shown on the Cayenne)

3. Check whether water has accumulated in the door sill and dry it if necessary.

   Information

   Always replace stoppers.

4. Insert new stoppers -1-  in the holes.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Stoppers (shown on the Cayenne)

5. If required:  Install door entry guard -1-  .

   > 663119 REMOVING AND INSTALLING DOOR ENTRY GUARD - ON "INSTALLING"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door entry guard (shown on the Cayenne)
