Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Screws securing roof assembly to body	Item 1 - 6	Tightening torque	8 Nm (6 ftlb.)

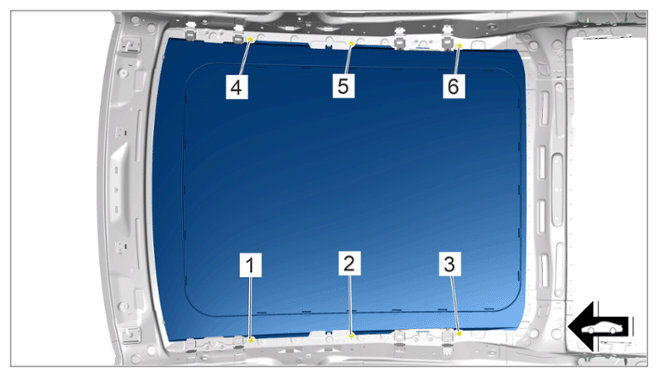

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Roof assembly to side panel, A-pillar	Dimension A	Gap dimension	3.5 mm +/- 0.7 mm

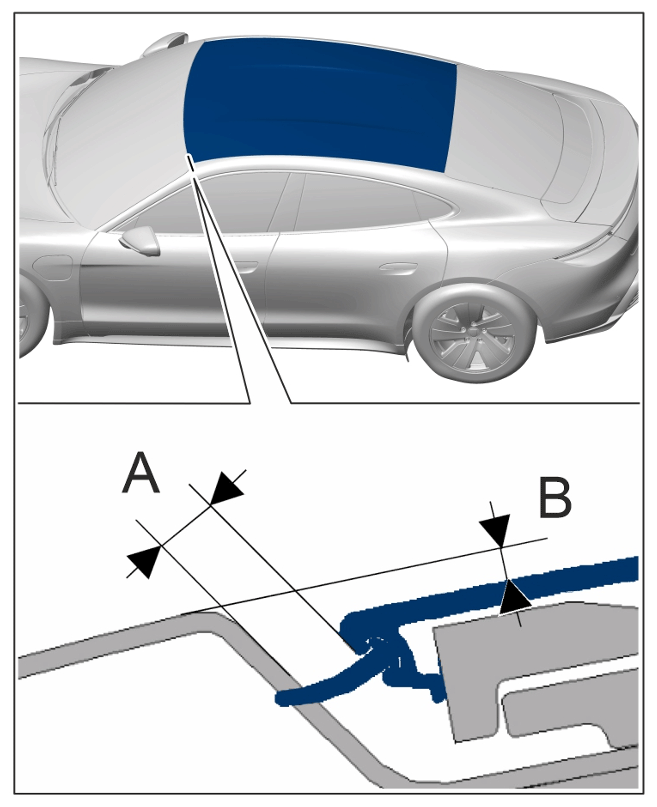

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to side panel at A-pillar
Roof assembly to A-pillar	Dimension B	Offset	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to A-pillar
Roof assembly to rear side panel	Dimension A	Gap dimension	3.7 mm	+/- 0.7 mm

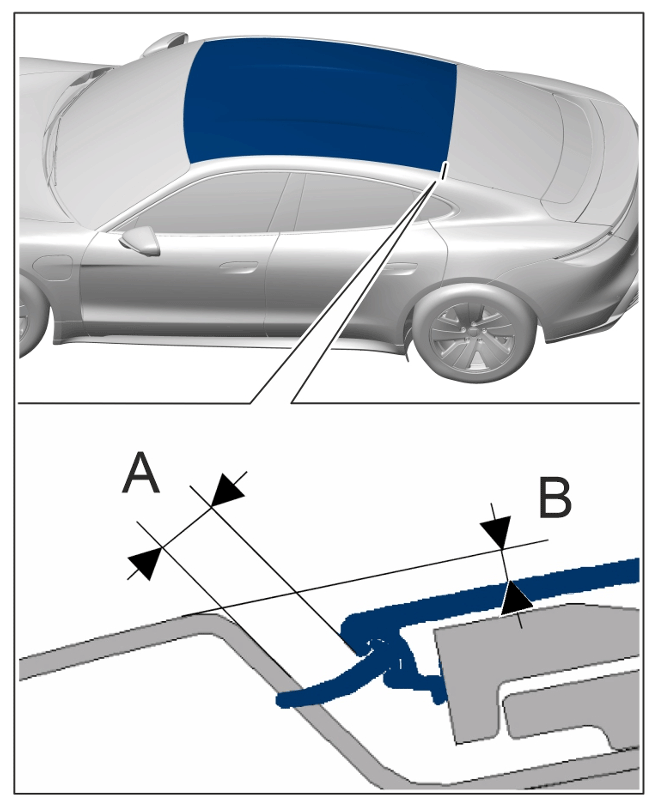

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to rear side panel
Roof assembly to rear side panel	Dimension B	Offset	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to rear side panel
Roof assembly to windscreen	Dimension A	Gap dimension	2 mm	- 0.5 mm	+ 0.8 mm

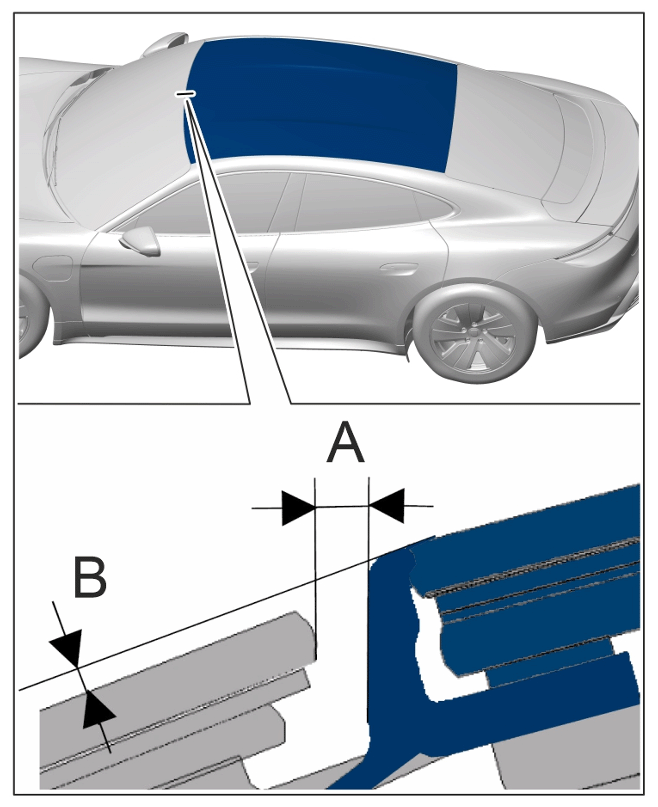

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to windscreen
Roof assembly to windscreen	Dimension B	Offset	1 mm	- 1.0 mm	+ 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to windscreen
Roof assembly to rear window	Dimension A	Gap dimension	2.5 mm	+/- 0.8 mm

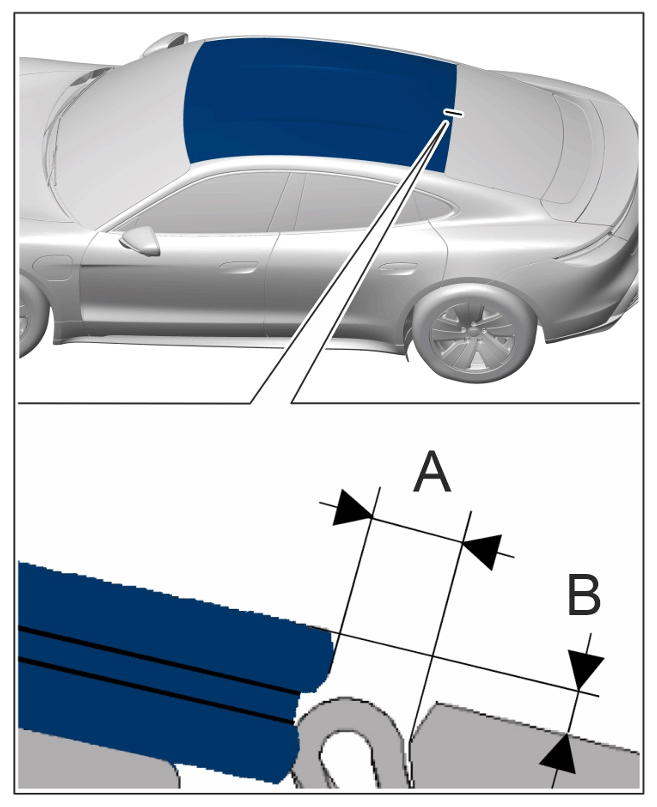

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to rear window
Roof assembly to rear window	Dimension B	Offset (single-pane safety glass)	1.5 mm	- 1.0 mm	+ 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof assembly to rear window
Cutting thread		Length	3.5 m
Applying adhesive		Application depth	15 mm
Holding time		Time	+ 10 s
