Adjusting Rear Lid: Notes

Information

• Adjust gap dimensions on lid and add-on parts in accordance with gap specifications.
• If the clearance in the opening is too great or too small, accessories must be centred with respect to the body.
• Ensure that the gaps do not run in a wedge-shaped fashion or do not narrow at local points.
• The specified values are guidelines, which should be observed as far as possible.
• The guidelines apply to repair work and assembly work.
• Use star gauges to check the gap dimensions.  > VAS 6937 - Adjusting gauge

1. Check gap dimensions.

   > 5X00IN GAP DIMENSIONS

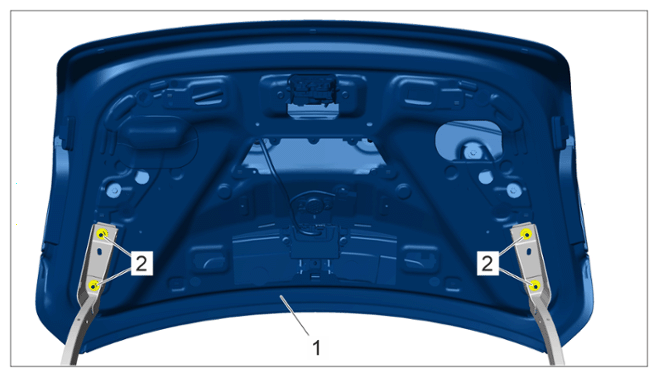

2. Loosen nuts -2-  so that the rear lid -1-  can still be moved.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear lid

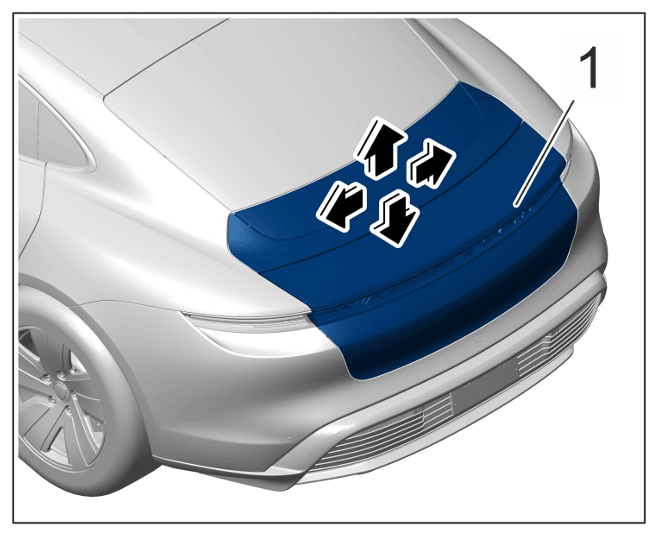

3. Adjust the rear lid -1-  by moving the lid -Arrows-  and ensure that the gap between the lid and rear window is parallel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear lid

4. Tighten nuts to > Tightening torque 20 Nm (15 ftlb.)  .
5. Check gap dimensions and make adjustments if necessary.

   > 5X00IN GAP DIMENSIONS
