Emergency Release - Rear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

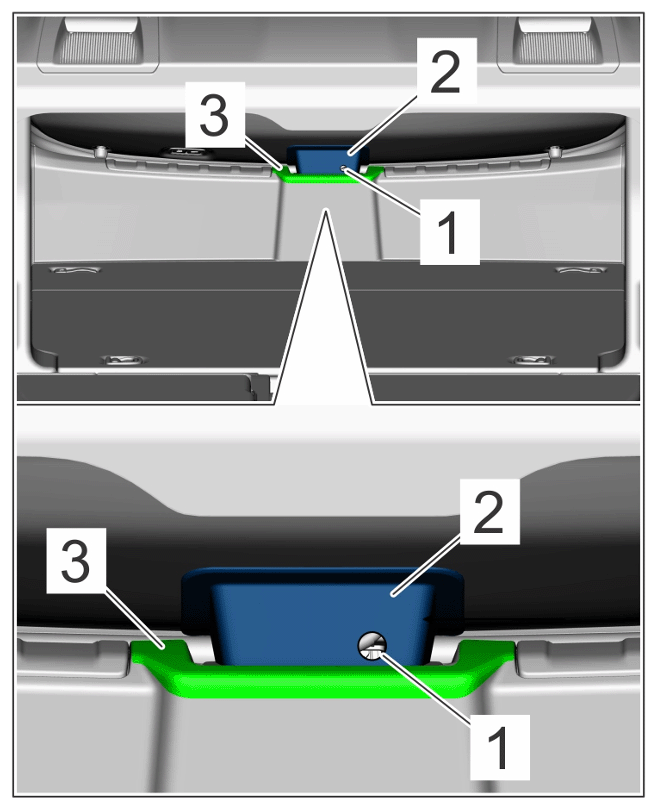

Cover for lock

1. 1.1 Detach trim panel in the area -3-  .
2. 1.2 Mark centre point of bore. > Length 30 mm  > Length 20 mm

   Information

   Drill carefully; components lying behind it, such as cables, can be damaged.

   Information

   This action will damage the component.

   Replace component.

3. 1.3 Also drill through lock cover -2-  with > Length 12 mm  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

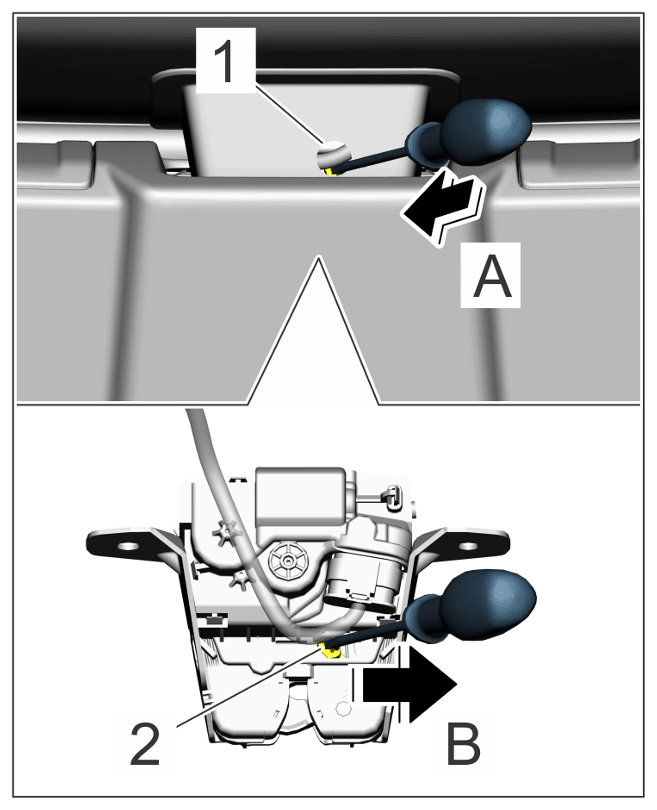

Lock

1. 2.1 Insert screwdriver into the bore hole -1-  . -arrow A-
2. 2.2 Probe the release -2-  with a screwdriver and engage the screwdriver.
3. 2.3 Actuate release -2-  with the screwdriver in direction -arrow B-  .

Lock unlocks audibly.
