Removing Rear Lid Release

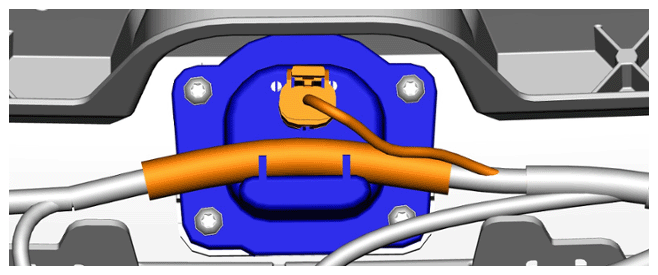

  1. Unplug rear lid release.
    G15563364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear lid release

    1. 1.1 Unclip electric line.
    2. 1.2 Release and disconnect electric connection.

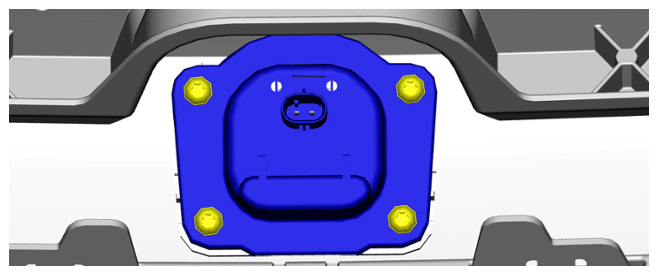

  2. Unscrew screws on rear lid release.
    G15563365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on rear lid release
