57 Front Door Central Locking -- Y1A - TAYCAN (Y1A)
>>
5726 Lock Peg
>>
WM, 572619 Removing And Installing Striker Pin
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Screws securing lock peg to body
Item 1
Tightening torque
25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

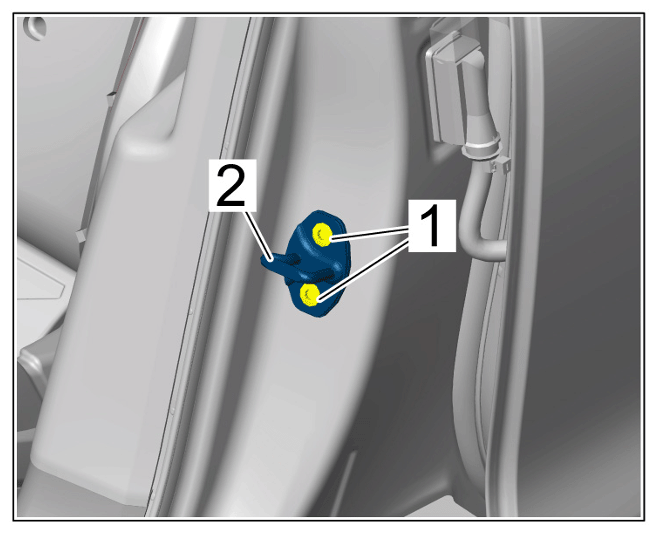

Lock peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
