57 Front Door Central Locking -- Y1A - TAYCAN (Y1A)
>>
5726 Lock Peg
>>
WM, 572619 Removing And Installing Striker Pin
>>
Removing Striker Pin
Removing Striker Pin

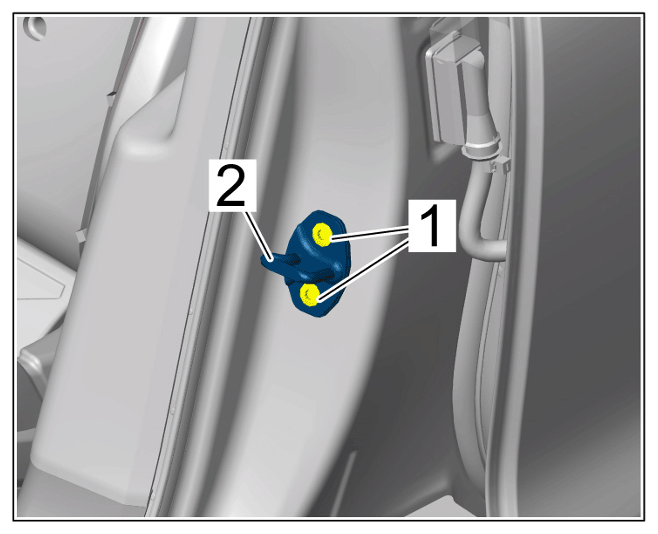

Mark position of lock peg (striker pin).
Unscrew screws
-1-
and remove striker pin (lock peg)
-2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lock peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
