Removing Front Emergency Call System Antenna

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit
    • Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
    • Switch off electrical loads before disconnecting or removing them.
  1. Release and disconnect electric plug connection for front emergency call system antenna -1  .

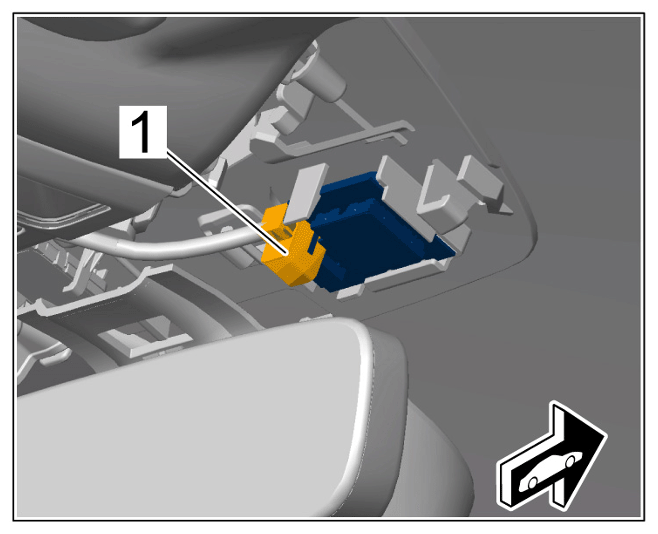

    G15566639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front emergency call system antenna

  2. Loosen front emergency call system antenna -2-  .

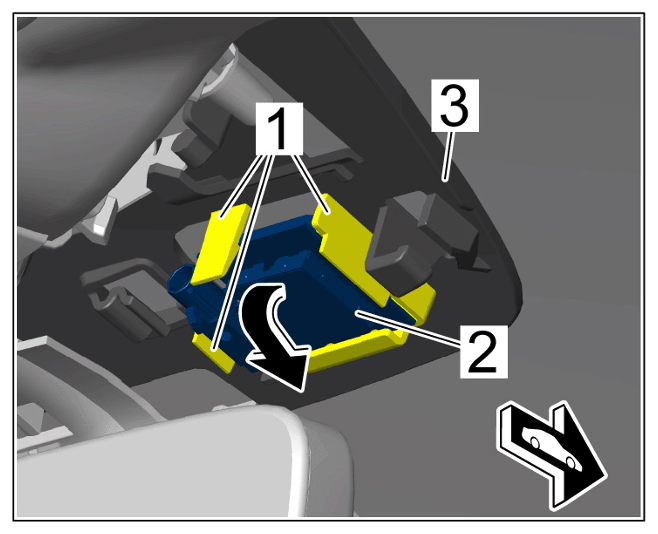

    G15566640Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front emergency call system antenna

    1. 2.1  Release locking lugs -1-  .
    2. 2.2  Guide front emergency call system antenna -2-  out of holder -3-  (-arrow-  ).
  3. Remove front emergency call system antenna.
