Repairing Antenna Cable In The Radio-Controlled Parking Control Unit Area

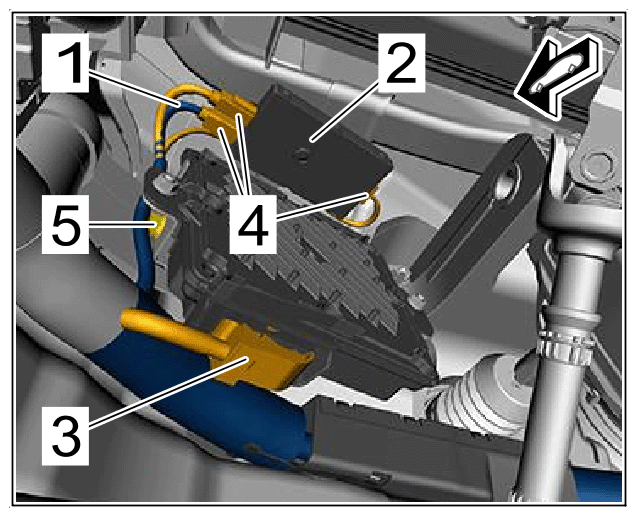

- Detach antenna cable -1-
in the area of radio-controlled parking control unit -2-
.
Antenna cable in the area of the control unit for radio-controlled parking
- 1.1 Unlock and pull off electric plug connection -3- to over-the-air control unit.
- 1.2 Unlock and pull off electric plug connection to control unit for radio-controlled parking -4- .
- 1.3 Unclip clip -5- using a plastic spatula.
- 1.4 Expose damaged area of antenna cable -1- in the electrical wire harness.
- Repair antenna cable.
- Installation is performed in reverse order. Pay particular attention to the following:
- 3.1 Push on electric plug connections until plugs lock perceptibly.
