Repairing Antenna Cable In Lte Antenna 2 Area (Luggage Compartment Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

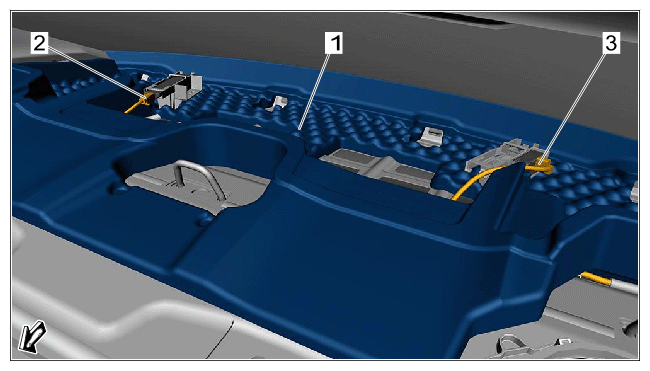

Luggage compartment cover sound absorber

1. 1.1  Unlock and pull off electric plug connection to LTE antenna -2-  .
2. 1.2  Unlock and pull off electric plug connection to Wi-Fi antenna -3-  .
3. 1.3  Remove sound absorber for luggage compartment cover -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

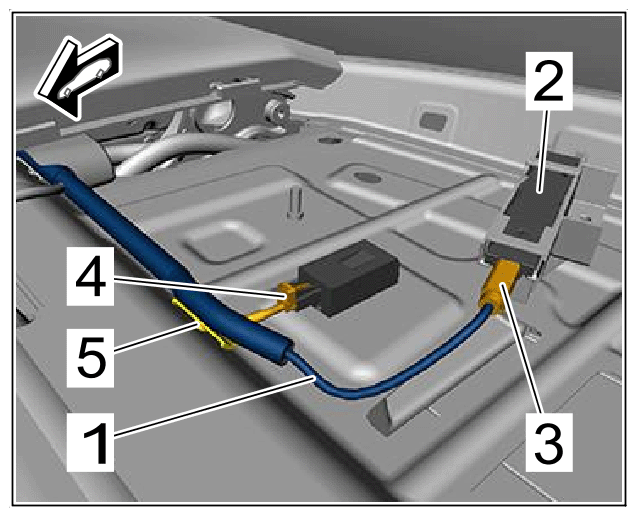

Antenna cable in LTE antenna 2 area

1. 2.1  Unlock and pull off electric plug connection to LTE antenna -3-  .
2. 2.2  Unlock aid pull off electric plug connection to luggage compartment light -4-  .
3. 2.3  Unclip clip -5-  using a plastic spatula.
4. 2.4  Expose damaged area of antenna cable -1-  in the electrical wire harness.

> 912841 REPAIRING ANTENNA CABLE

1. 4.1  Push on electric plug connections until plugs lock perceptibly.
