Installing Front Footwell Outlet Vent On Driver'S Side
- Insert footwell outlet vent -2-
into the connection piece for the air guide -3-
. The footwell outlet vent must engage securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

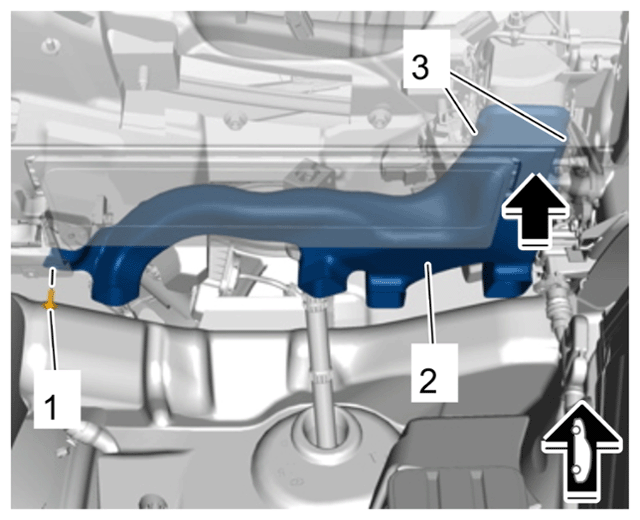

Installing footwell outlet vent on driver's side
- Tighten screw -1-
to the appropriate tightening torque > Tightening torque 0.7 Nm (0.4 ftlb.)
.
Installing footwell outlet vent on driver's side
