Pressure Pipe And Intake Manifold (V6 BITURBO)

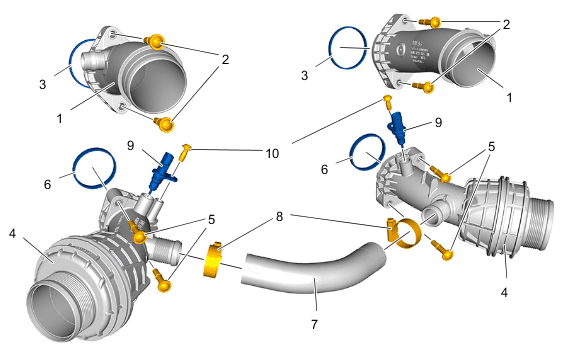

Fig 1: Pressure Pipe And Intake Manifold Components Location With Torque Specification - V6 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe and intake manifold - V6 biturbo

1	Intake manifold
2	Screws, M6 x 32 > Tightening torque 9 Nm (6.5 ftlb.)
3	Seal/Replace if damaged
4	Pressure pipe
5	Screws, M6 x 23 > Tightening torque 9 Nm (6.5 ftlb.)
6	Seal/replace
7	Connecting hose
8	Screw-type clamp > Tightening torque 3.5 Nm (2.5 ftlb.)
9	Temperature sensor
10	Screw > Tightening torque 9 Nm (6.5 ftlb.)
