Removing Control Unit For Sun Blind

WARNING: This page is about a different variant/trim than selected.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
Do not touch electric pins and plug contacts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

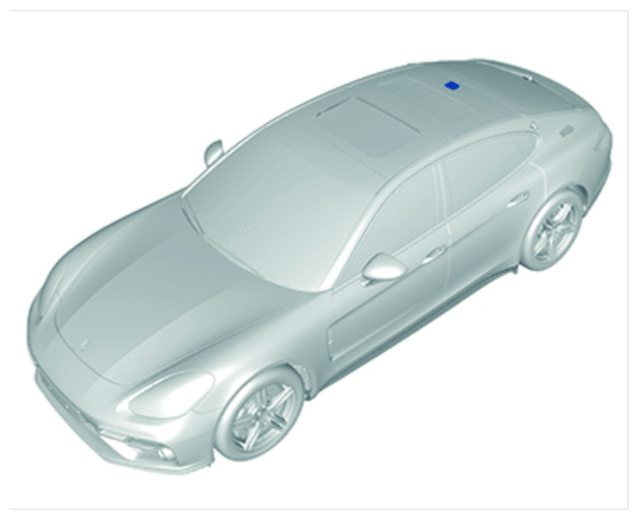

Installation position of control unit for sun blind

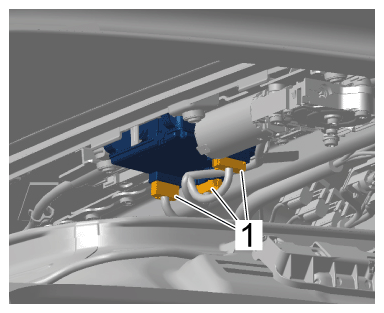

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections

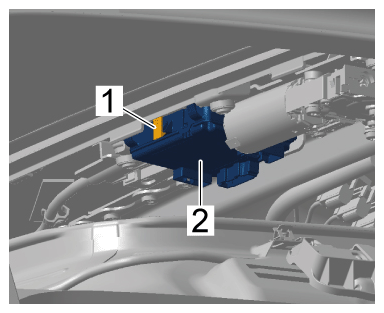

Release locking lug -1- and unclip control unit for panoramic roof -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping control unit for sun blind
