Installing Sliding-Roof Panel

Information

• Repair illustrations show one side of the vehicle or describe a similar component.
• Complete certain steps on the opposite side of the vehicle as well.

1. Insert sliding-roof panel into the powered sunroof mechanism from above and screw in screws hand-tight.
2. Adjust sliding-roof panel.

   > 604015 ADJUSTING SLIDING-ROOF PANEL

3. Tighten the screws > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
4. Remove adhesive residues from the sliding roof in area -1-  and clean it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area of side cover

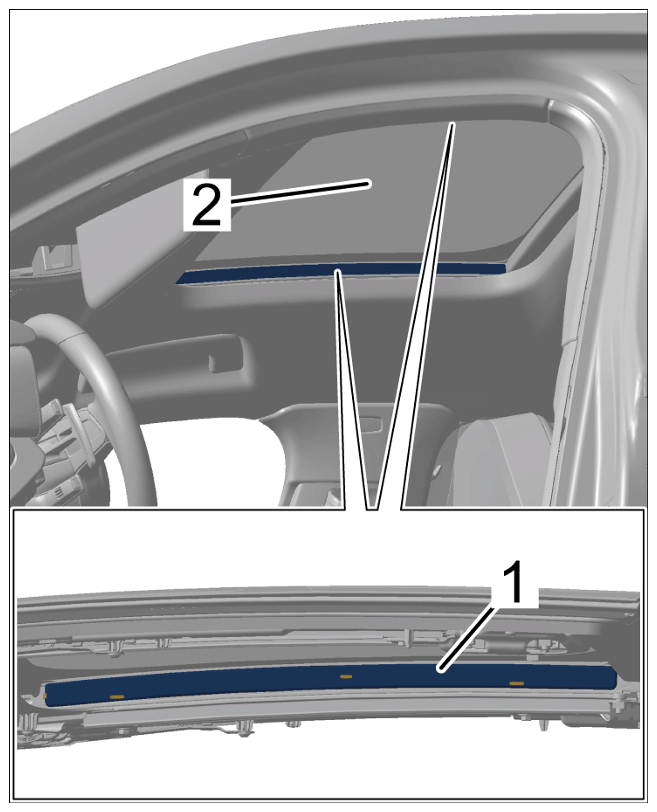

5. Raise sliding-roof panel -2-  so that the side covers -1-  can be installed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in side covers

   Information

   Check clips and replace side covers if necessary.

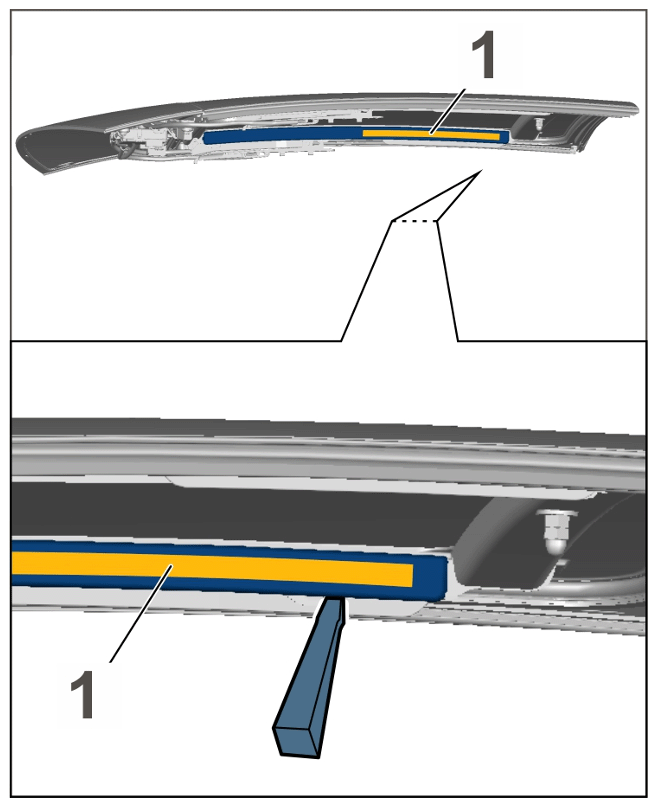

6. Clip side covers -1-  into the guide rail for the sliding roof.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in side covers

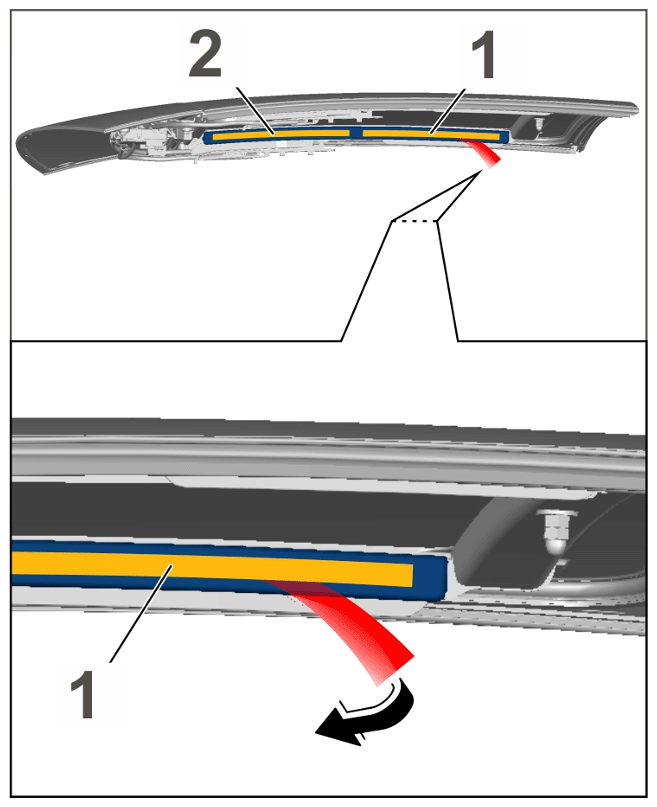

7. Remove protective film in area -1-  and press on cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side cover

8. The protective film in area -2-  is not removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side cover
