Subsequent Work

1. Remove adhesive residues from the sliding roof in area -1-  and clean it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

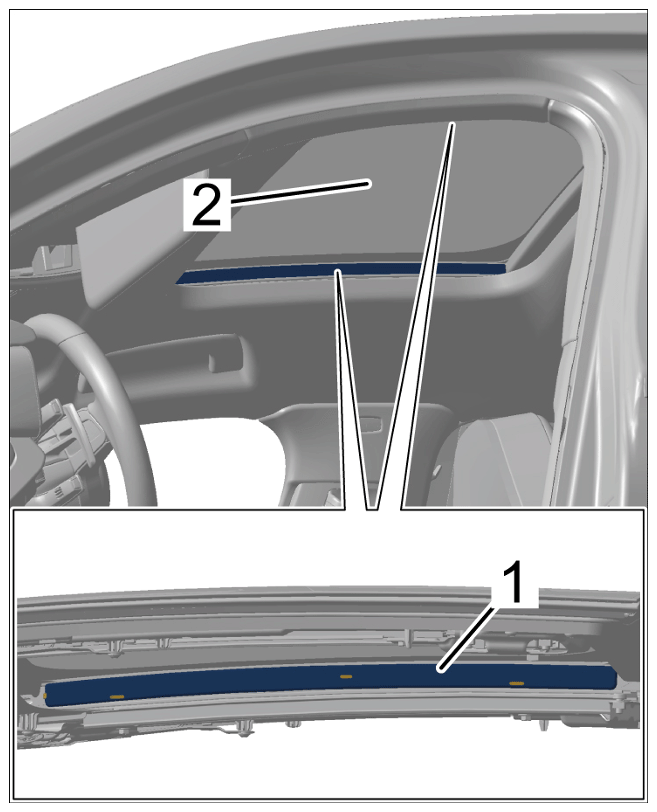

   Bonding area of side cover

2. Raise sliding-roof panel -2-  so that the side covers -1-  can be installed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in side covers

   Information

   Check clips and replace side covers if necessary.

3. Clip side covers -1-  into the guide rail for the sliding roof.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in side covers

4. Remove protective film in area -1-  and press on cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side cover

5. The protective film in area -2-  is not removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side cover
