Replacing Coarse Threaded Bolts

Information

The following bolts are available:

• Defective or broken coarse threaded bolts can be replaced with repair bolts  .
• Coarse threaded bolt, T5  : > BOLT 999.190.342.01
• Coarse threaded bolt, T6  : > BOLT 999.190.501.01

1. Grip defective coarse threaded bolts on the complete vehicle (e.g. bolts with damaged threads) using a pliers and screw them out.

   Grind down during body repairs if necessary.

   NOTE: Drilling work not performed correctly

   • Risk of damage to components
   • Leaks

     → Protect the component using a wooden support.

     → Use a bit stop while drilling.

2. Secure the bit stop.
   1. 2.1 Secure a setting collar on the drill bits used in order to limit the drilling depth > Length 3.0 mm  > 9399/4 - Set of setting collars
3. Remove underbody protection close to the sealing surface of the repair bolt.

   Information

   Check that there is adequate clearance at the back of the installation area. The bit stop must be used on the complete vehicle.

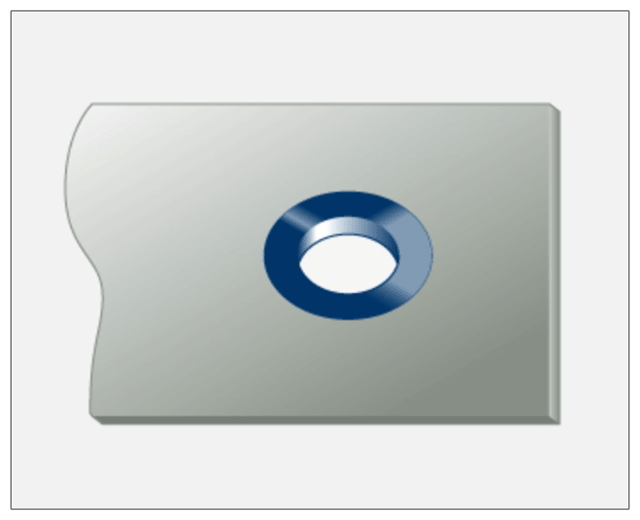

4. Drill a hole.
   1. 4.1 Drill a hole at the correct installation position > Diameter 4.0 mm
   2. 4.2 Drill out the hole.

      For coarse threaded bolts, T5 > Diameter 7.0 mm

      For coarse threaded bolts, T6 > Diameter 9.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling hole

5. Set up tool.

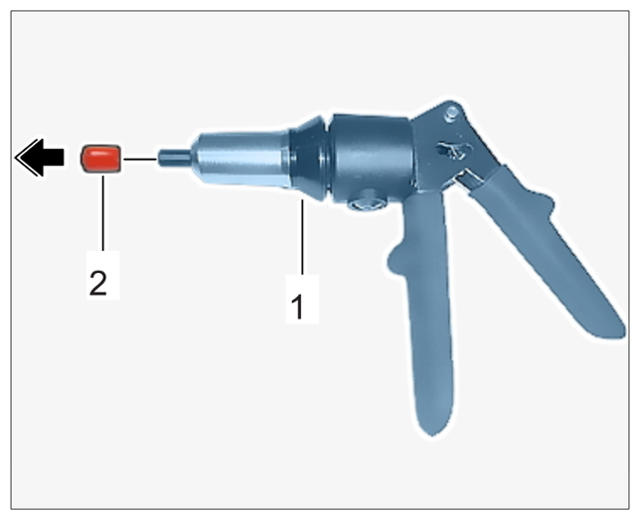

   1. 5.1 Pull cap -2-  off the riveting tool -1-  > 9399/1 - Riveting tool for ground pins

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing cap

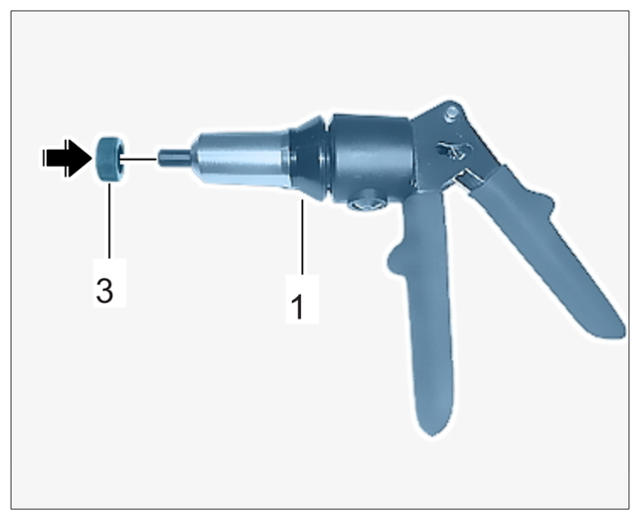

   2. 5.2 Attach mounting -3-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Attaching mounting

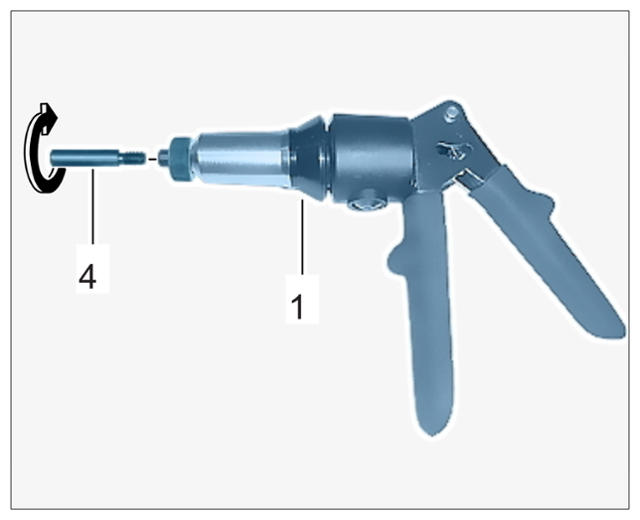

   3. 5.3 Screw on threaded mandrel -4-  > 9399/2 - Threaded mandrel + mouth piece  Left thread

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screwing on threaded mandrel

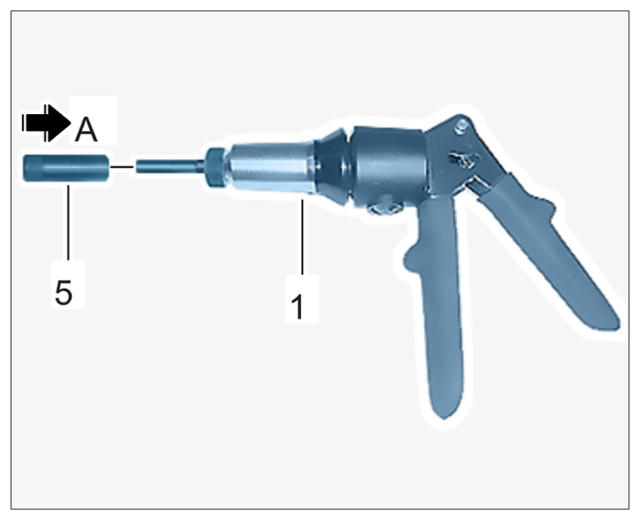

   4. 5.4 Attach mouth piece -5-  . -arrow A-  > 9399/2 - Threaded mandrel + mouth piece

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Attaching mouth piece

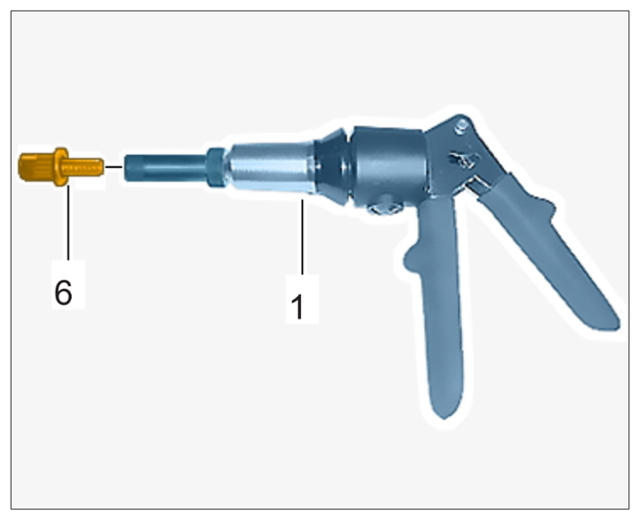

   5. 5.5 Screw threaded bolt -6-  in fully.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing in threaded bolt

6. Rivet in threaded bolt.
   1. 6.1 Insert threaded bolt into the bore.

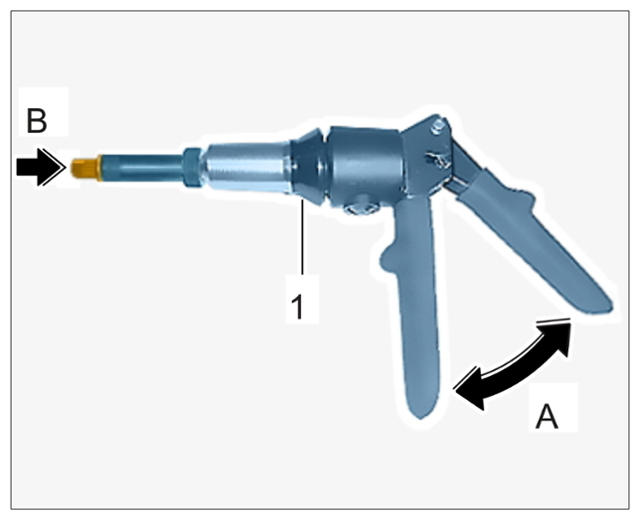

   2. 6.2 Rivet in threaded bolt using the riveting tool -1-  (pumping action) -arrow A-  . -arrow B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Riveting in threaded bolt

7. Complete the riveting process.

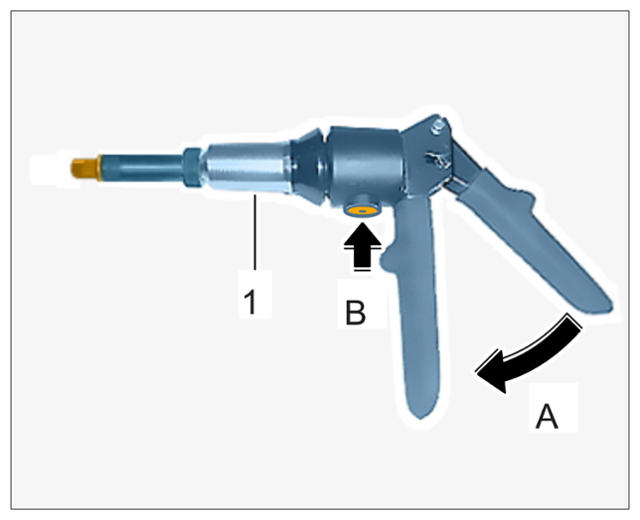

   1. 7.1 When the riveting process is complete, relieve the hydraulics using the bleeder valve -arrow B-  . Continue to apply pressure to the riveting tool while doing this. -arrow A-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Bleeding riveting tool

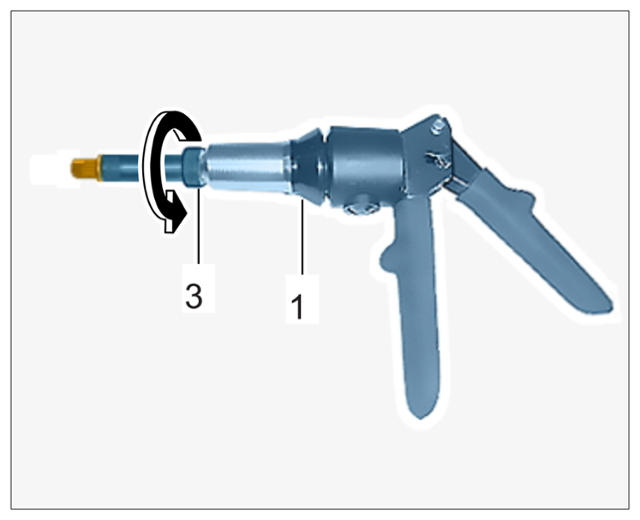

   2. 7.2 Turn the mounting -3-  to the left to release the riveted threaded bolt from the riveting tool -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening threaded mandrel

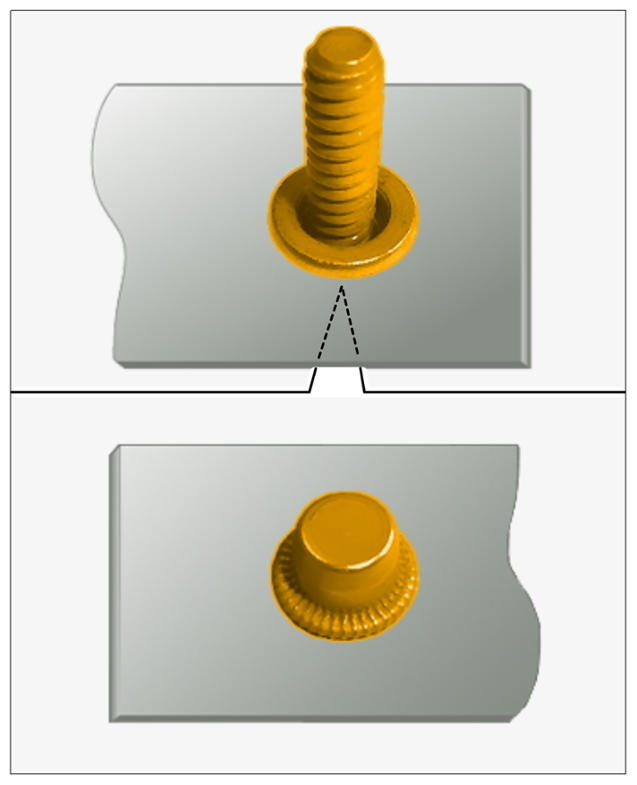

Fully riveted threaded bolt:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Riveted threaded bolt
