Punch And Bottom Die Pairs

WARNING: This page is about a different variant/trim than selected.

Punch rivet	Pressing punch rivet joints out of two-layered panel joints with restricted access	D3 + D5
	Pressing punch rivet joints out of three-layered panel joints with restricted access	D4 + D5
	Pressing punch rivet joints out of two-layered panel joints	S4 + D5
	Pressing punch rivet joints out of three-layered panel joints	S5 + D5

The correct punch and bottom die pair for the punch rivet joint is specified in the table above.
Information

The pressed-out punch rivet remains in the panel to be replaced and is removed together with the panel.

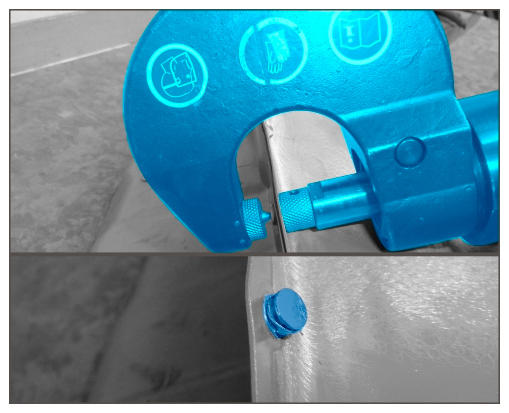

Press out punch rivet using > VAS 6790 - compact booster .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing out punch rivet
