Sealing Elements
WARNING: This page is about a different variant/trim than selected.
Information
- Sealing elements are either bonded or filled with foam filler depending on the repair area
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

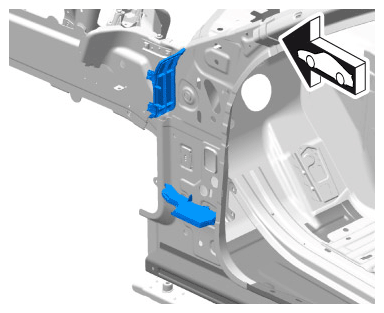

Sealing elements in lower A-pillar area
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sealing elements in upper A-pillar area
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

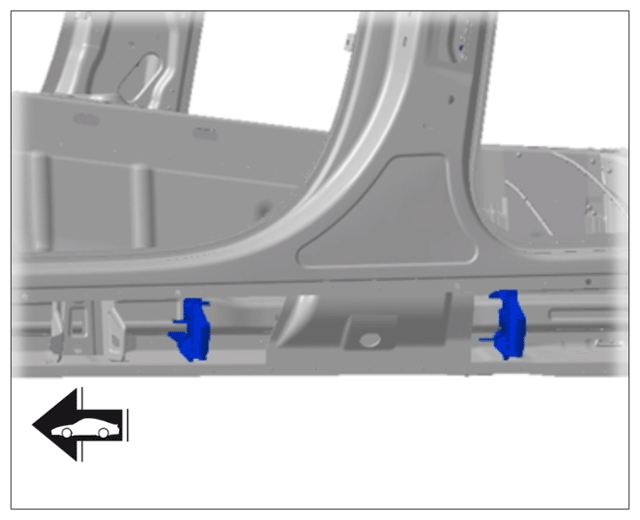

Sealing elements in side member area
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sealing elements in B-pillar area
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

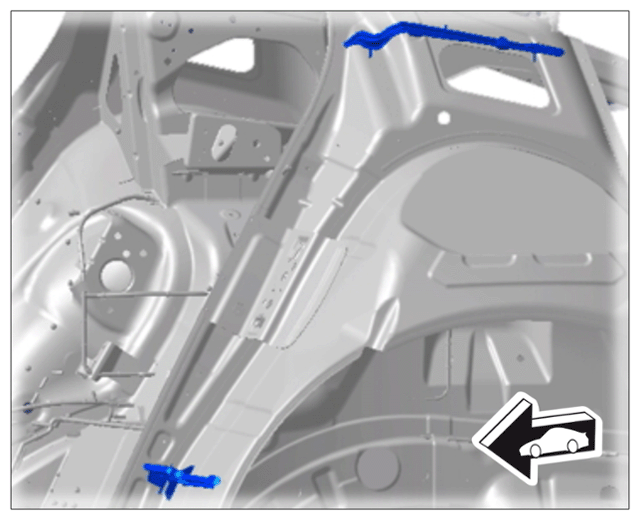

Sealing elements in rear side section area
