List Of Materials

WARNING: This page is about a different variant/trim than selected.

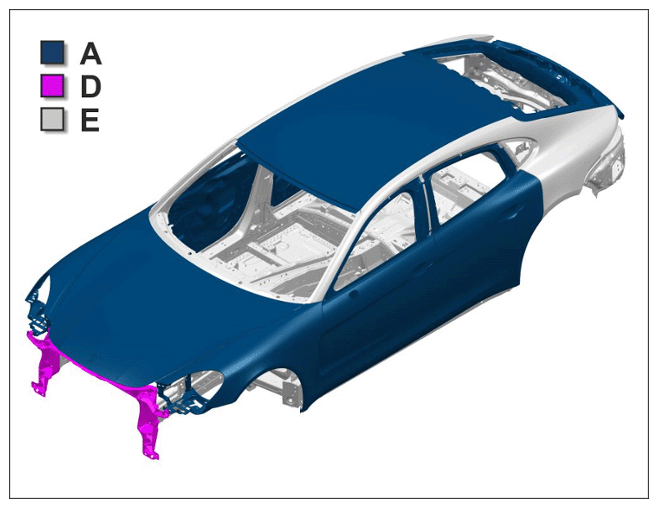

Fig 1: Body Components Structure Identification Materials - Add-On Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Add-on parts

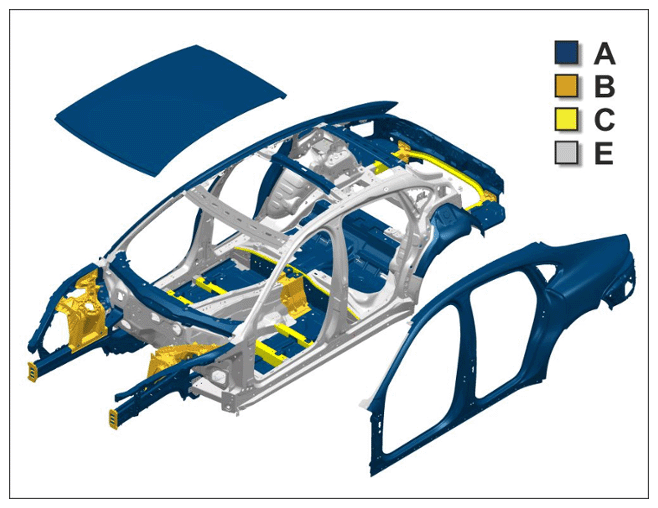

Fig 2: Body Components Structure Identification Materials - Upper Structural Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper structural parts

A	Aluminium sheet
B	Cast aluminium
C	Extruded aluminium profiles
E	Steel; for details, see

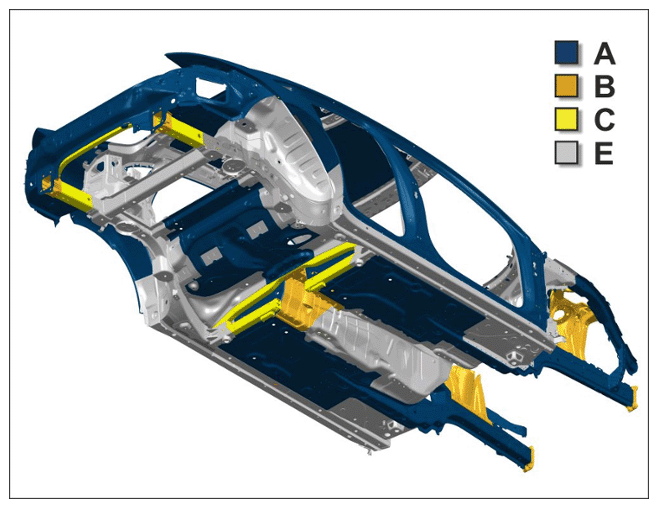

Fig 3: Body Components Structure Identification Materials - Lower Structural Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower structural parts

A	Aluminium sheet
B	Cast aluminium
C	Extruded aluminium profiles
E	Steel; for details, see

Item	Material group	Use/Characteristics
A	Aluminium sheet	Outer skin parts very malleable Part replacement as per Workshop Manual Reinforcement parts very malleable Part replacement as per Workshop Manual Must not be reshaped using mechanical or hydraulic pulling or pressing equipment
B	Cast aluminium	Reinforcement parts Part replacement is not permitted Must not be reshaped
C	Extruded aluminium profile	Reinforcement parts not very malleable Part replacement as per Workshop Manual Must not be reshaped using mechanical or hydraulic pulling or pressing equipment
