Technical Values - Wheel Housing

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screws on front part of front wheel housing liner, bottom	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)

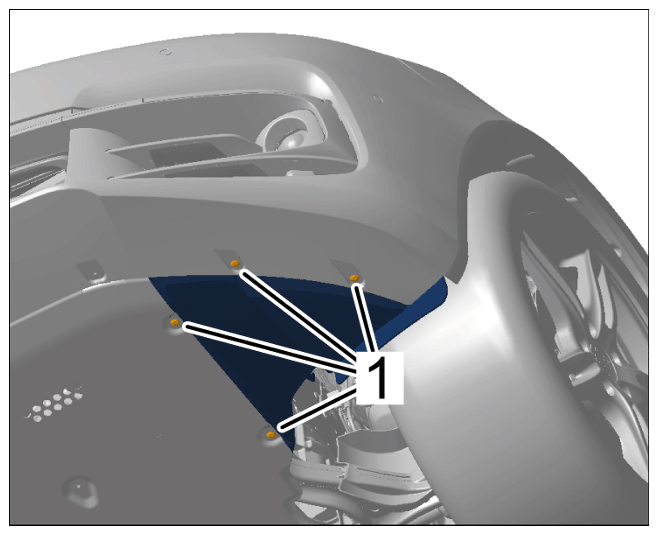

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on front part of front wheel housing liner at the bottom
Nut and screws on front part of front wheel housing liner	Items 2 and 3	Tightening torque	2.5 Nm (1.8 ftlb.)

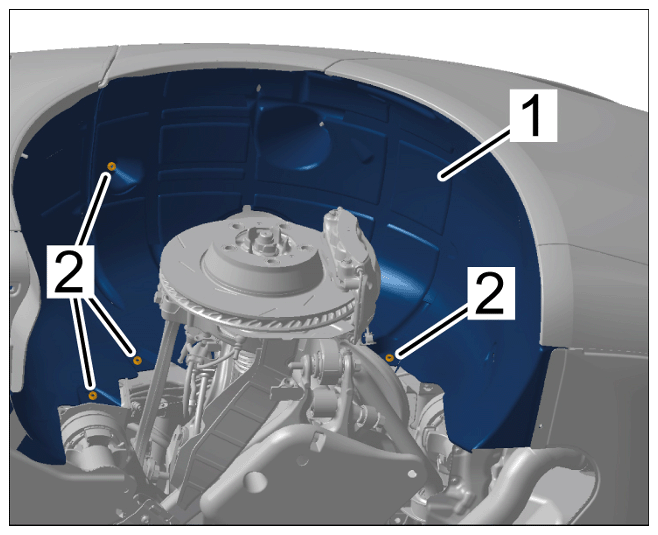

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front part of front wheel housing liner
Screws and nut	Items 1 and 2	Tightening torque	2.5 Nm (1.8 ftlb.)

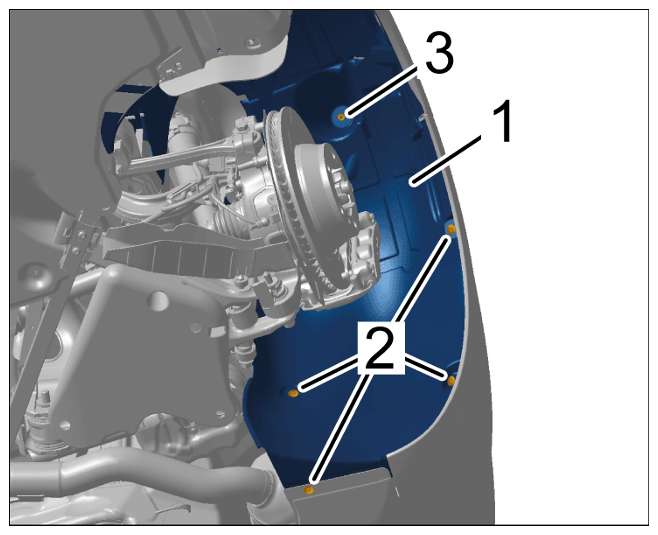

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear part of front wheel housing liner
Nuts and screw on rear wheel housing liner	Items 2 and 3	Tightening torque	2.5 Nm (1.8 ftlb.)

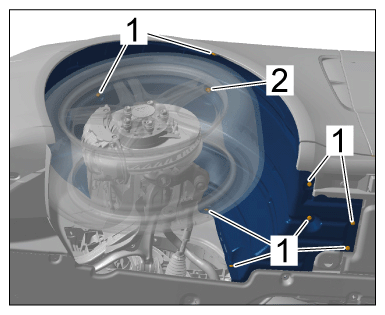

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear wheel housing liner

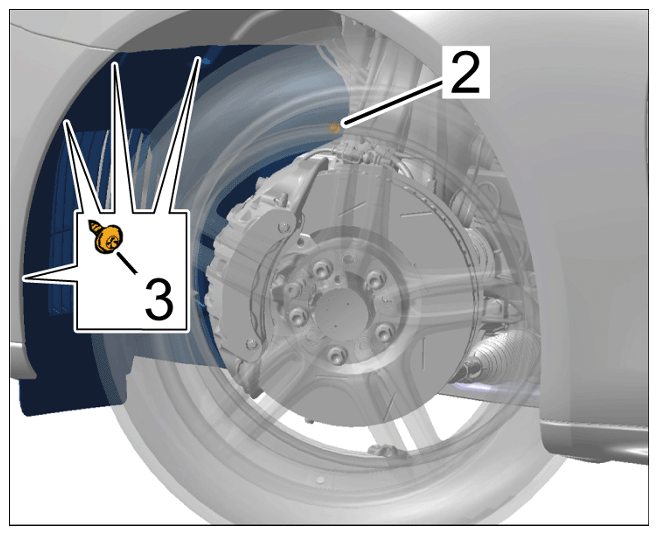

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear wheel housing liner
Screws for sheetmetal panel in wheel housing	Item 2	Tightening torque	8 Nm (6 ftlb.)

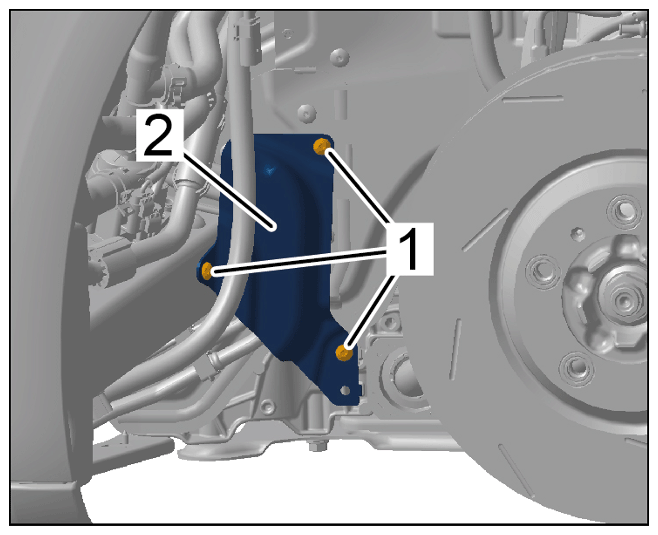

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for sheetmetal panel in wheel housing
Fuel filler tube screws	item. 1; Item. 2; Item. 3	Tightening torque	8 Nm (6 ftlb.)

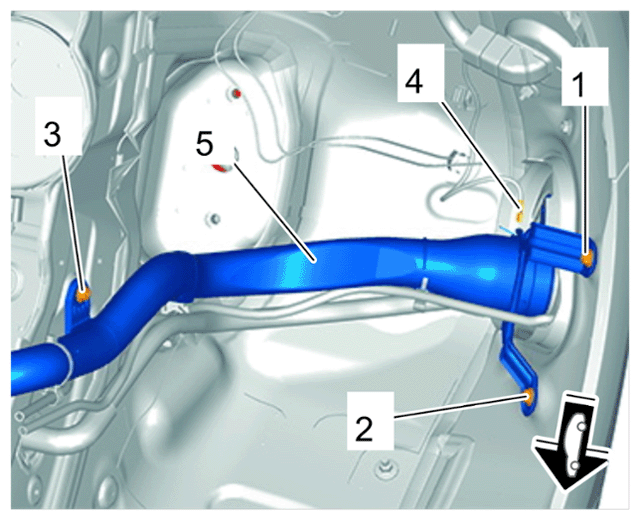

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fuel filler tube holder
