Door Lock

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

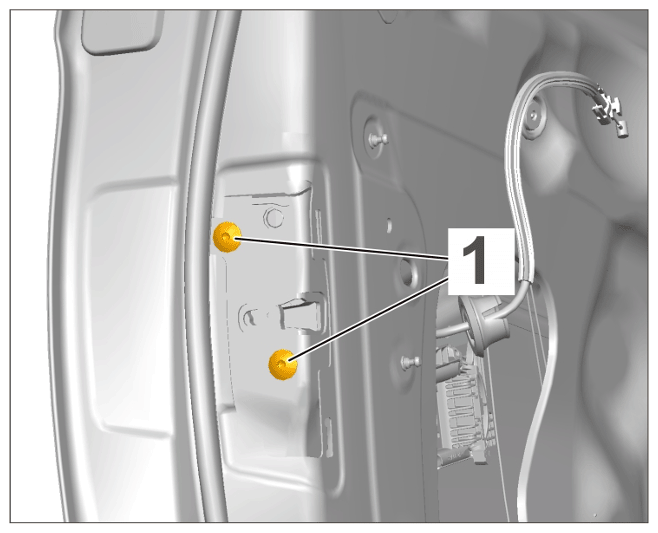

Door lock to bodyshell	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

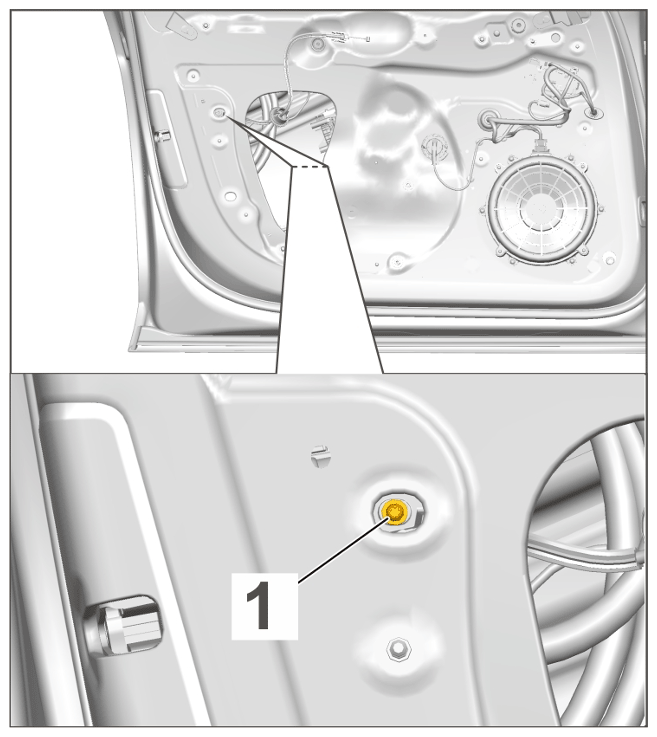

Door lock to guide rail	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

Location	Description	Type	Basic value	Tolerance
Door lock to bodyshell	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
