Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

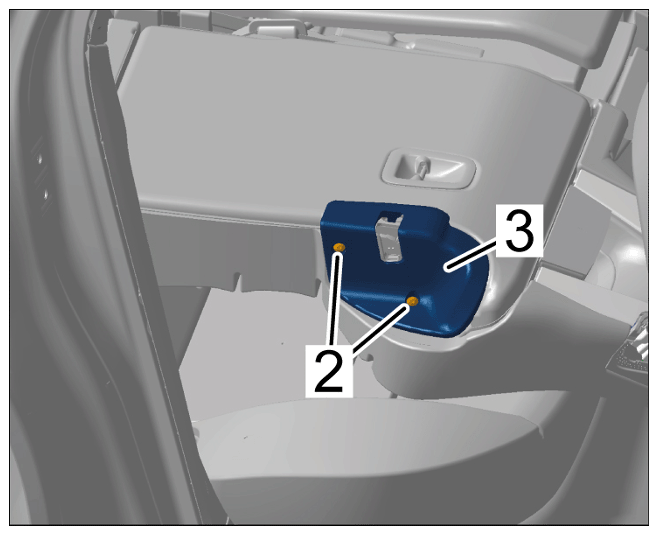

| Screws for rear-backrest lock cover |
Item 2 |
Tightening torque |
1.5 Nm (1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws for rear-backrest lock cover |

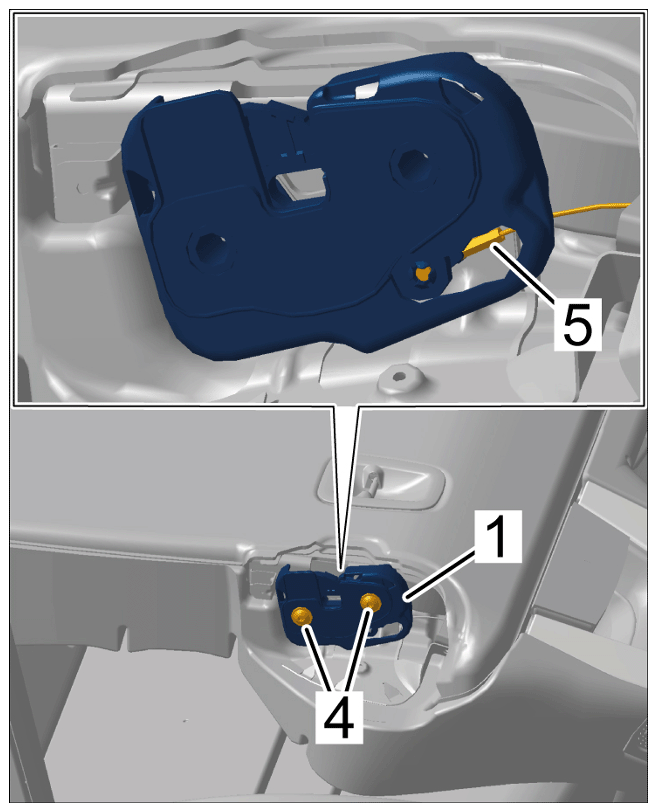

| Screws for rear-backrest lock |
Item 4 |
Tightening torque |
24 Nm (18 ftlb.) |
+/- 2.4 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws for rear-backrest lock |
