Removing Locking Mechanism For Rear Backrest

WARNING: This page is about a different variant/trim than selected.
  1. Remove foam part of headrest -2-  .
    G15874569Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Foam part

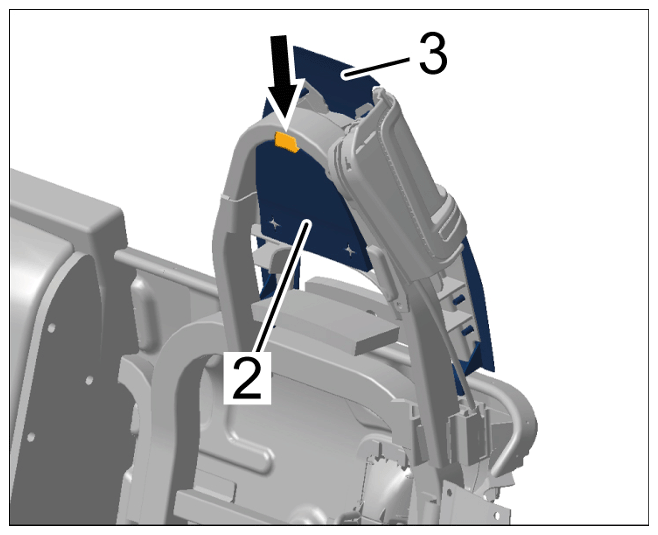

  2. Release headrest support -3-  (-arrow-  ) and remove it.
    G15874570Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest support

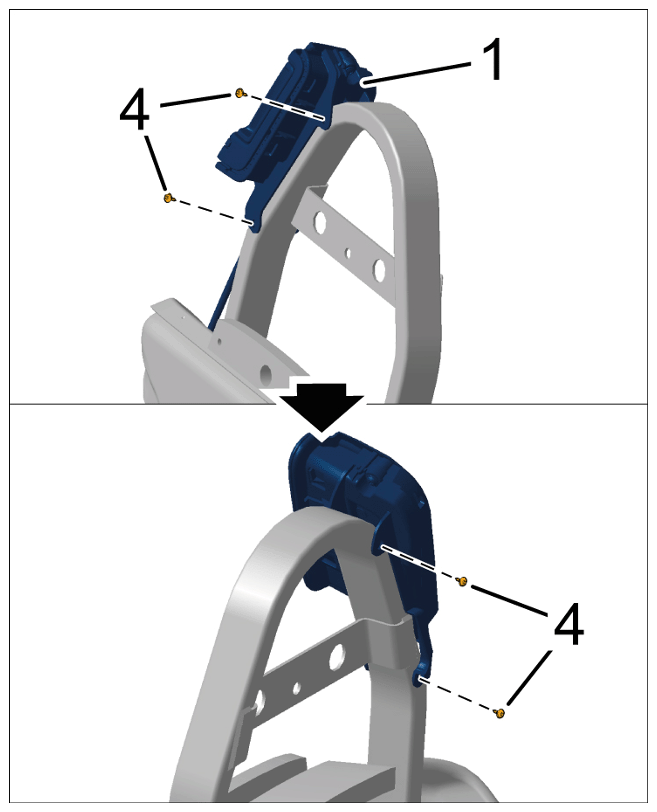

  3. Unscrew screws -4-  on locking mechanism for backrest -1-  .
    G15874571Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

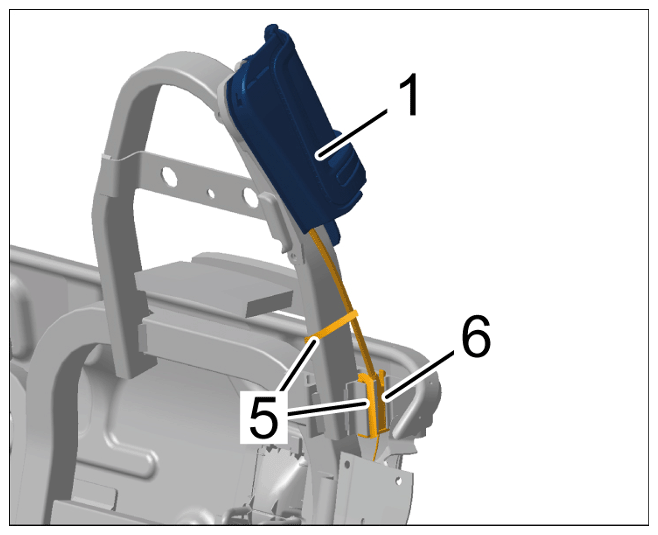

  4. Cut tie-wrap -5-  , release cable holder -6-  and remove locking mechanism for backrest -1-  .
    G15874572Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking mechanism for backrest
