Removing Rear Seat

WARNING: This page is about a different variant/trim than selected.

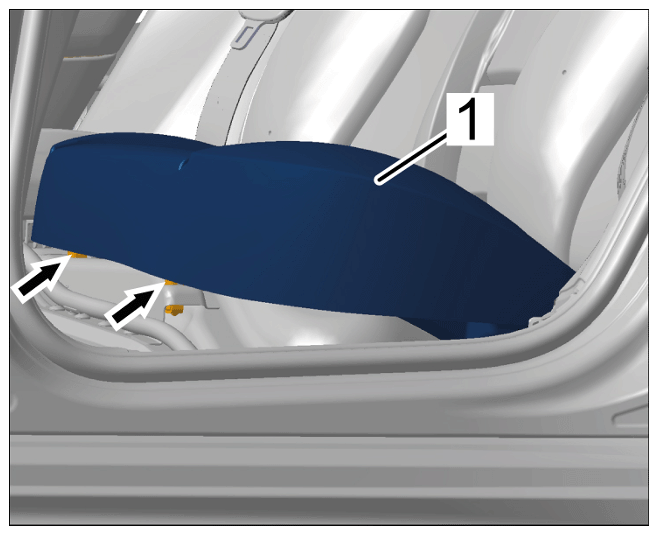

  1. Release locking lugs by pressing them using a suitable tool -arrows-  and unclip rear seat -1-  .
    G15874526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear seat

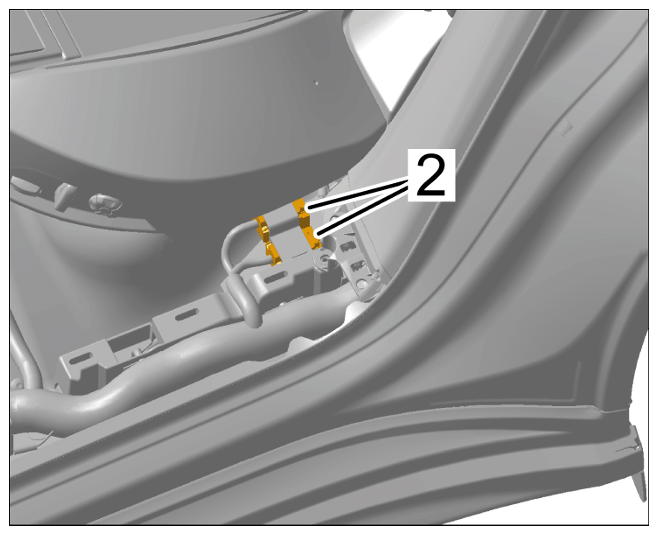

  2. Only for rear electric comfort or sports seat:

    Fold over the carpet in the outer area and release and disconnect electric plug connections -2-  .

    G15874527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections at rear door sill trim

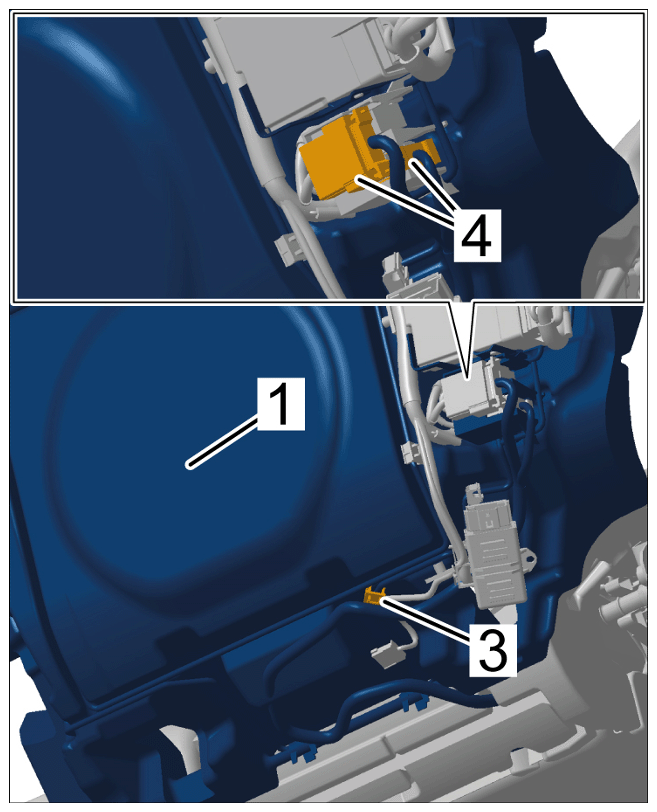

  3. Unclip line bracket -3-  , release and disconnect electric plug connections -4-  and remove rear seat -1-  .
    G15874528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear seat
