Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...
Screw for securing clip on outside of vehicle Item 1 Tightening torque 10 Nm (7.5 ftlb.)

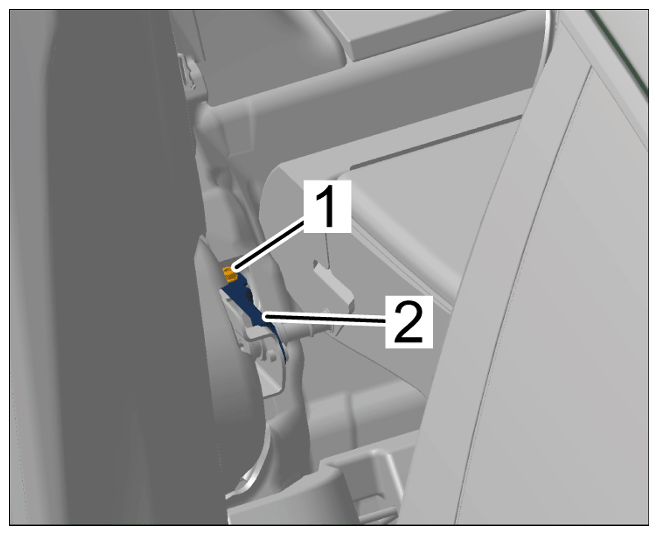

G15874522Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for securing clip on outside of vehicle
Screw for securing clip on centre of vehicle Item 3 Tightening torque 10 Nm (7.5 ftlb.)

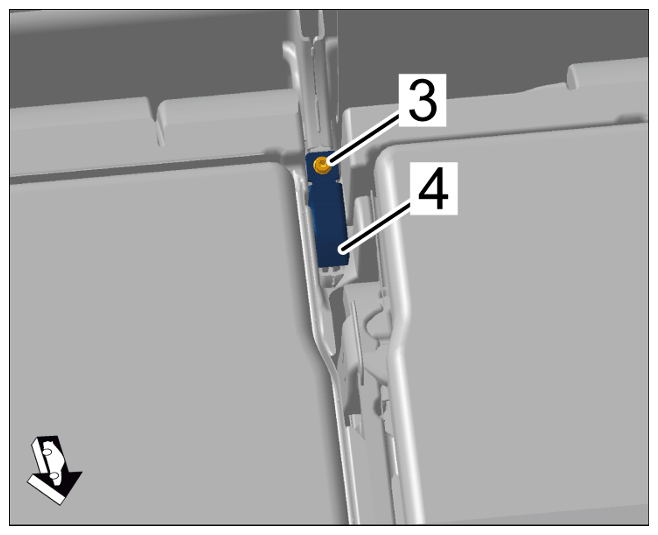

G15874523Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing securing clip on centre of vehicle
