Removing Front Seat Trim Panel (Outer)
WARNING: This page is about a different variant/trim than selected.

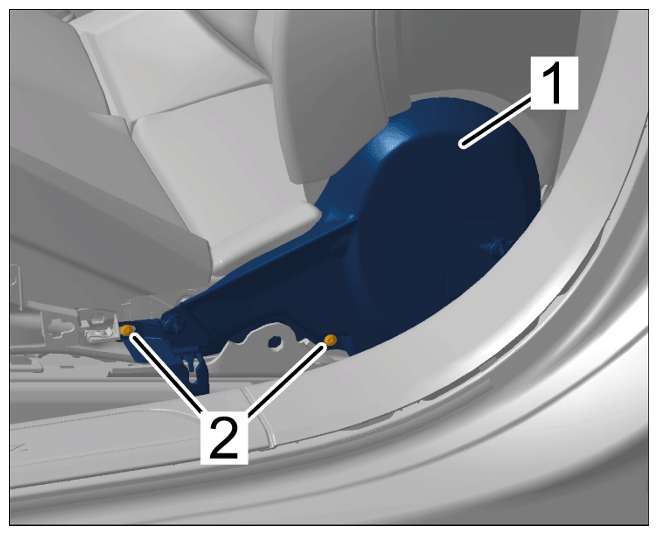

- Unscrew screws -2-
from front seat trim panel (outer) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

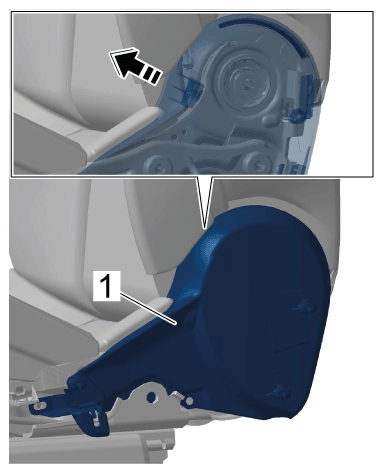

- Unclip front seat trim panel (outer) -1-
(-arrow-
) and remove it by pulling it to the rear.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing front seat trim panel (outer)
