Removing Air Cushion For Seat

WARNING: This page is about a different variant/trim than selected.

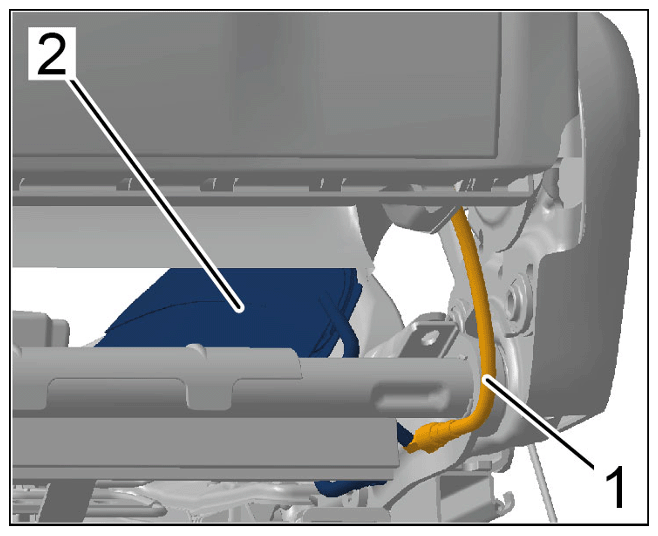

Disconnect connection for air line -1- on air cushion for seat at the right -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting connection for air line

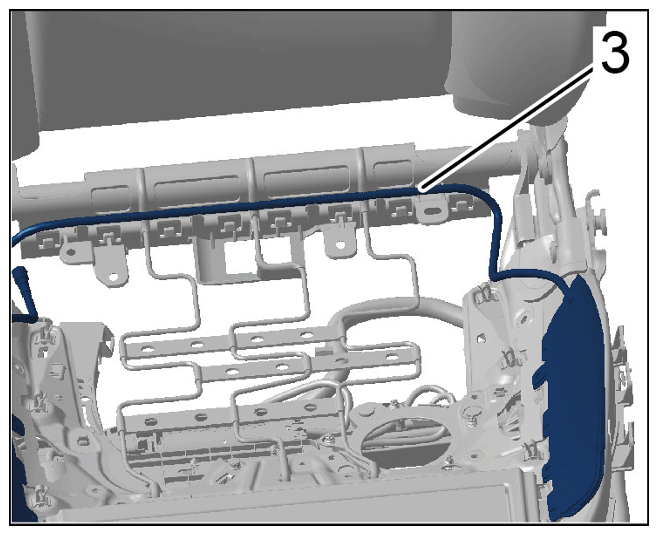

Unclip air line -3- from seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting air line from seat frame

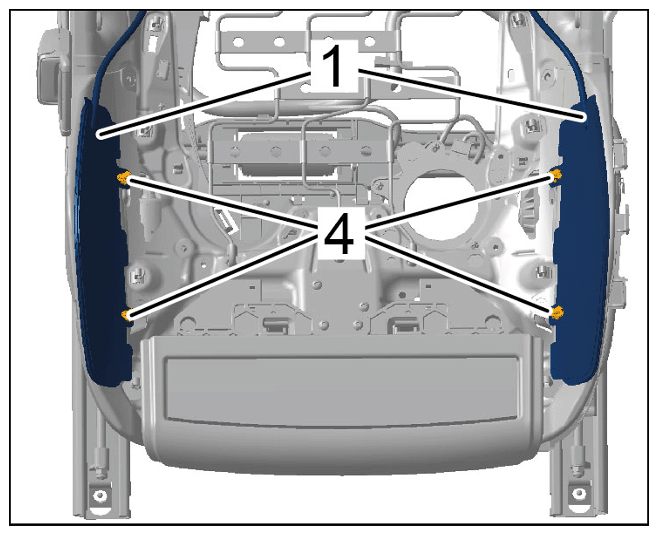

Unclip clips -4- on air cushion for seat -1- at the left and right and remove air cushion for seat -1- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing air cushion for seat
