Removing Oil Pan
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
→ Ventilate the work area well.
→ Never ingest or inhale.
→ Read specific information on the Hazard Sheet.
→ Wear personal protective gear.
→ Do not smoke, eat or drink in the work area.
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.

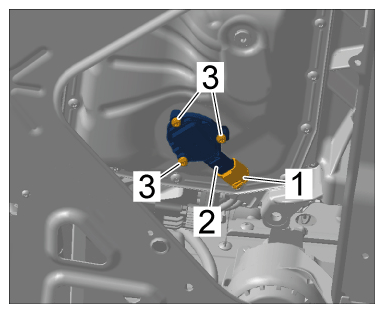

- Release and disconnect electric plug connection -1-
on the oil level sensor -2-
.
Releasing and pulling off electric plug connection

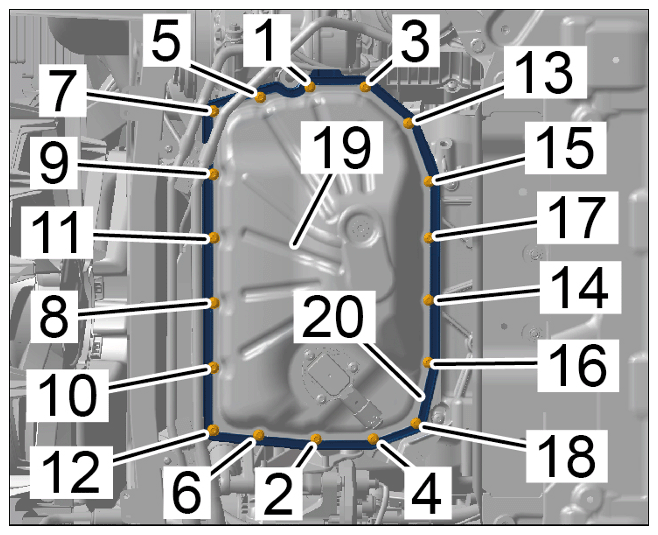

- Remove and clean the oil pan -19-
.
- 2.1 Unscrew and remove screws -1 to 18-
.
Information
Check for residual oil when removing the oil pan.
- 2.2 Loosen oil pan -19- from the bonding and remove it.
- 2.3 Remove residual sealant on the oil pan and oil guide housing using a special plastic brush for drills.
Information
The sealing face must be free of oil and grease!
- 2.4 Clean the sealing face -20- .
Removing and cleaning oil pan
- 2.1 Unscrew and remove screws -1 to 18-
.
