Removing Oil Pump

Information

• Be careful of the bushes when removing the oil pump. These can sometimes remain in the metal bead gasket or fall into the engine.
• The oil pump must never be re-installed without the bushes.

Information

Use > VAS 6928 - Socket wrench set, 39-piece  to loosen the screw on the sprocket.

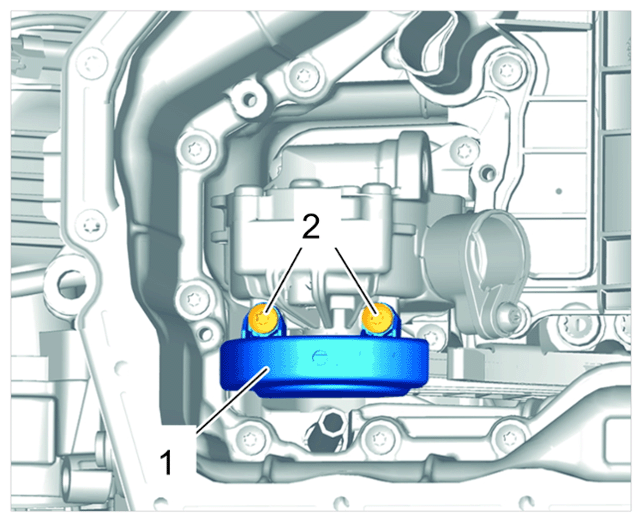

1. Remove oil intake tube -1-  .
   1. 1.1 Unscrew screws -2-  .
   2. 1.2 Remove oil intake tube -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil intake tube

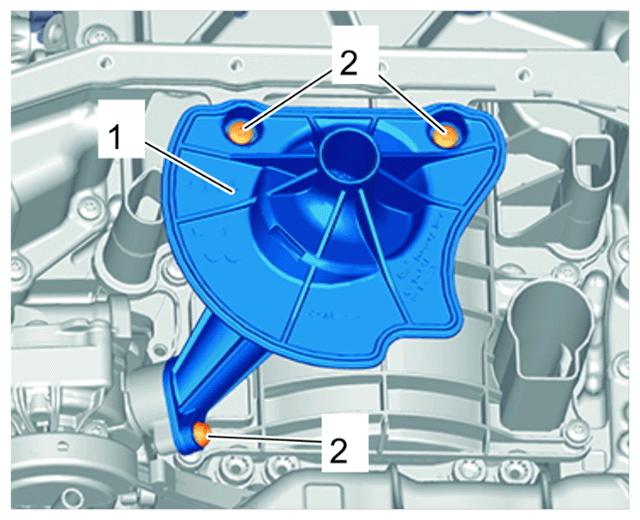

2. Remove sprocket guard -1-  .
   1. 2.1 Unscrew screws -2-  .
   2. 2.2 Remove sprocket guard -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sprocket guard

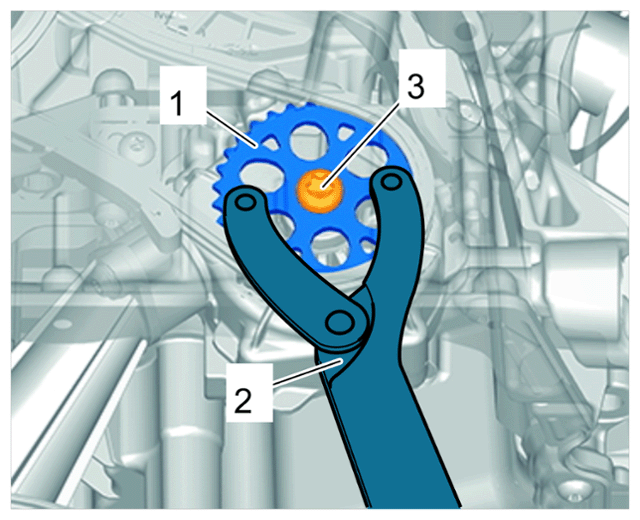

3. Remove sprocket -1-  .
   1. 3.1 Use > T10172 - counter-hold tool-2-  to counter at the sprocket -1-  .
   2. 3.2 Unscrew screw -3-  using > VAS 6928 - Socket wrench set, 39-piece  .
   3. 3.3 Remove sprocket -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Counter-hold tool on sprocket

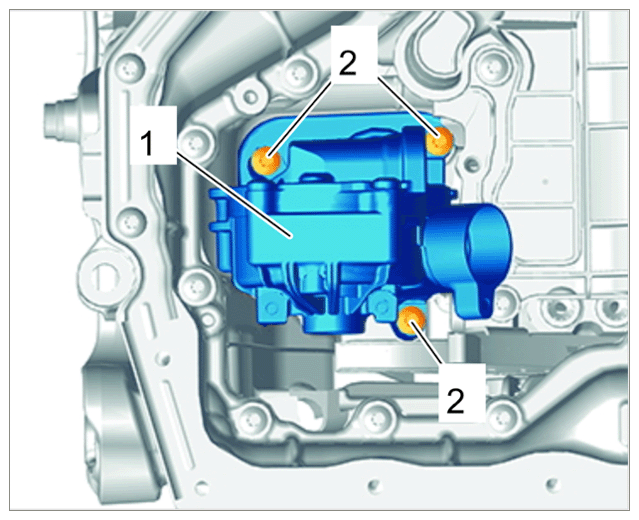

4. Remove oil pump -1-  .
   1. 4.1 Unscrew screws -2-  .
   2. 4.2 Remove oil pump -1-  with seal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pump
