Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Power steering gear to front axle carrier | Thread M12 x 1.5/always replace bolts and nuts following removal! | Initial tightening | 70 Nm (52 ftlb.) | ||
| Power steering gear and front axle carrier | Thread M12 x 1.5/always replace bolts and nuts following removal! | Final tightening torque angle | + 180° | ||
| Tie-rod ball to wheel bearing housing | Hexagon nut, M12 x 1.5 | Tightening torque | 85 Nm (63 ftlb.) | ||
| secondary bearing for power-steering gear | Items 1 and 2: Screw M8 x 80 and hexagon nut M6 - replace | Initial tightening | 20 Nm (15 ftlb.) | ||
| Secondary bearings for power-steering gear | Items 1 and 2: Screw M8 x 80 and hexagon nut M6 -replace | Final tightening rotation angle | + 180° | ||
|

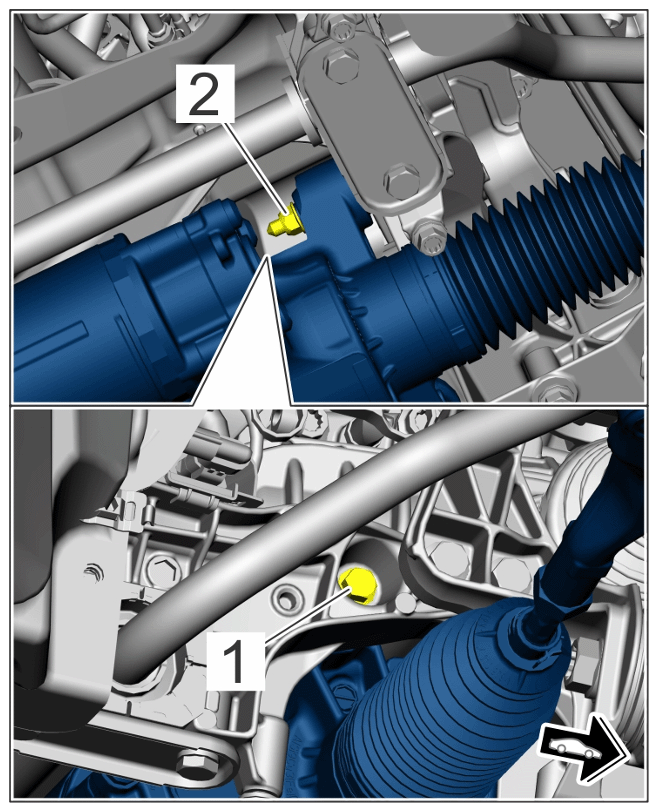

Screw joint for secondary bearing for power-steering gear |
|||||
| Heat shield to power-steering gear | Cheese head bolt, M5 x 12 | Tightening torque | 4 Nm (3 ftlb.) | ||
| Steering column Centre to power-steering gear (universal joint) | Hexagon roundhead bolt, M8 x 30/always replace bolt following removal! | Initial tightening | 20 Nm (15 ftlb.) | ||
| Steering column Centre to power-steering gear (universal joint) | Hexagon roundhead bolt, M8 x 30/always replace bolt following removal! | Final tightening torque angle | + 90° | ||
| external current supply | charging device | current | 90 A | ||
