Removing Steering Wheel: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Turn wheels to straight-ahead position.
  2. Only for vehicles with heated steering wheel (l-no. 1XE, 1XG, 2FF, 2FG, 2FX or 2ZH):

    Release and disconnect electric plug connection for steering wheel heating -1-  .

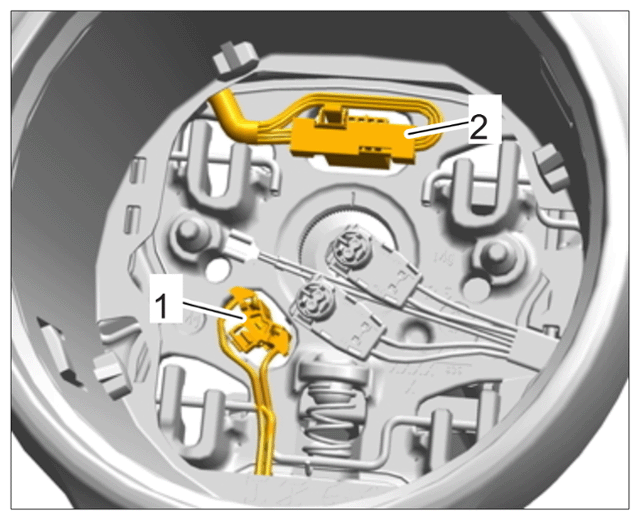

    G15862553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection for steering wheel heating

  3. Release and disconnect electric plug connection for airbag
    G15862554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection for airbag

    Information

    After unscrewing the screw and before  removing the steering wheel, mark the position of the steering wheel relative to the steering column.

  4. Unscrew and remove screw -1-  .

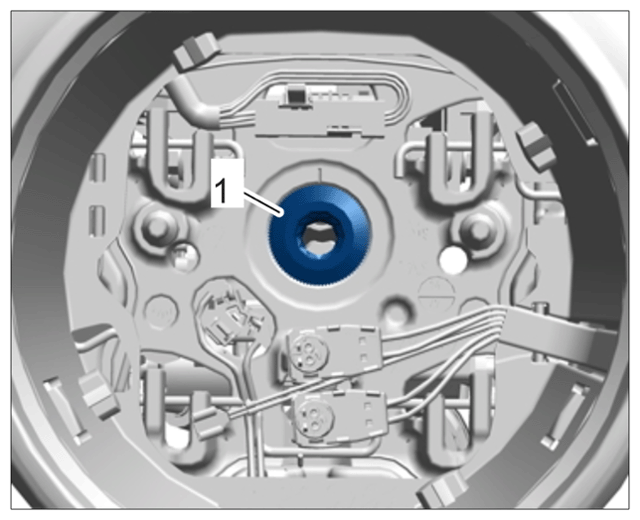

    G15862555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw

  5. Remove steering wheel.
